SSM2306CPZ-R2 - Analog Devices

Description: Audio Amp Speaker 2x2.4W LFCSP16 Analog Devices SSM2306CPZ-R2 2-Channel Audio Amplifier, Class-D Stereo 70dB, 16-Pin LFCSP VQ

Download SSM2306CPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

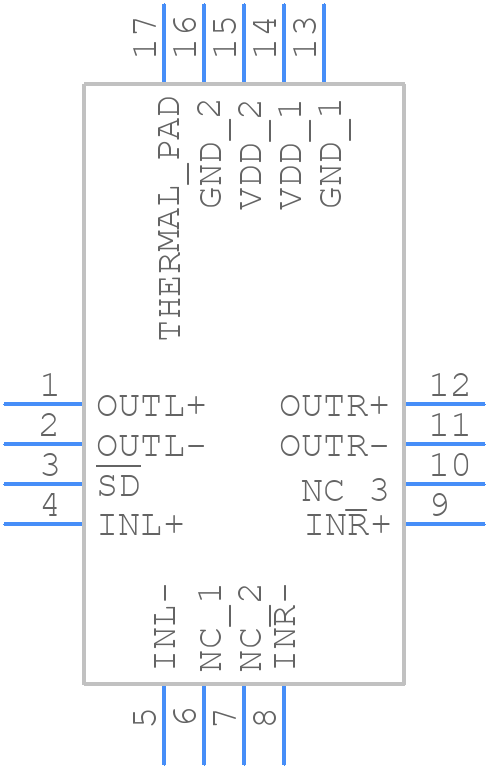

Symbol
SSM2306CPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2306CPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-3 (LFCSP)
click to zoom
3D Models
SSM2306CPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-3 (LFCSP)
click to zoom

SSM2306CPZ-R2 Details

  • Manufacturer Part Number:

    SSM2306CPZ-R2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-2, LFCSP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    18 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.4 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

SSM2306CPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2306CPZ-R2 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the power supply with a 10uF capacitor and a 100nF capacitor in parallel.
  • The SSM2306CPZ-R2 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to perform thermal simulations to ensure the device operates within its specified temperature range.
  • Yes, the SSM2306CPZ-R2 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a qualified process. However, it's recommended to consult with Analog Devices Inc. for specific requirements and to ensure that the device meets the specific requirements of the application.
  • To troubleshoot issues with the SSM2306CPZ-R2, start by checking the power supply voltage, input voltage, and output voltage. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for oscillations or other anomalies. If the issue persists, consult the datasheet and application notes, and contact Analog Devices Inc. for further support.
