SSM2306CPZ-REEL - Analog Devices

Description: Audio Amp Speaker 2-CH Stereo 2.4W Class-D 16-Pin LFCSP EP T/R

Download SSM2306CPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

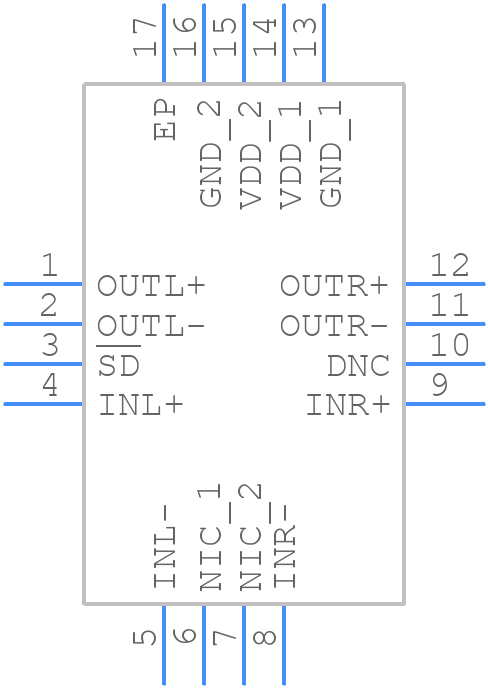

SSM2306CPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2306CPZ-REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-27_2022
click to zoom
3D Models
SSM2306CPZ-REEL - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-27_2022
click to zoom

SSM2306CPZ-REEL Details

  • Manufacturer Part Number:

    SSM2306CPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-2, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-27

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    18 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.4 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

SSM2306CPZ-REEL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
  • The SSM2306CPZ-REEL requires a specific bias voltage and current to operate optimally. Refer to the datasheet for the recommended bias conditions, and ensure that the voltage and current sources are stable and well-regulated.
  • The maximum power dissipation of the SSM2306CPZ-REEL is dependent on the operating conditions, such as temperature and supply voltage. Refer to the datasheet for the recommended power dissipation limits, and ensure that the device is properly heat-sinked and cooled.
  • To troubleshoot issues with the SSM2306CPZ-REEL, start by verifying that the device is properly biased and that the input and output signals are within the recommended specifications. Use oscilloscopes and other test equipment to measure the signals and identify any anomalies. Consult the datasheet and application notes for troubleshooting guidance.
  • Yes, the SSM2306CPZ-REEL is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and temperature limits to ensure reliable assembly and operation.
