SSM2375CBZ-REEL - Analog Devices

Description: Audio Amp Speaker 1-CH Mono 3.7W Class-D 9-Pin WLCSP EP T/R

Download SSM2375CBZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

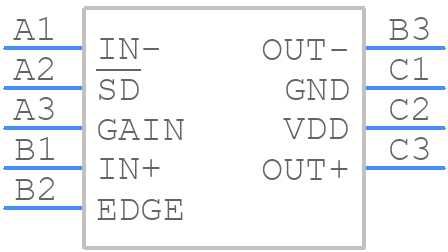

Symbol
SSM2375CBZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2375CBZ-REEL - Analog Devices PCB footprint - BGA - BGA - CB-9-2
click to zoom
3D Models
SSM2375CBZ-REEL - Analog Devices - 3D model - BGA - CB-9-2
click to zoom

SSM2375CBZ-REEL Details

  • Manufacturer Part Number:

    SSM2375CBZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    WLCSP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    CB-9-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    12 dB

  • JESD-30 Code:

    S-PBGA-B9

  • JESD-609 Code:

    e3

  • Length:

    1.46 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    3.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.655 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.46 mm

SSM2375CBZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2375CBZ-REEL involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended operating conditions, use a stable input voltage, and decouple the device with a 10uF capacitor. Also, ensure that the output is properly terminated and the feedback network is correctly configured.
  • The maximum power dissipation of the SSM2375CBZ-REEL is 1.4W. However, this can be limited by the thermal resistance of the package and the PCB. It's essential to ensure proper thermal management to prevent overheating.
  • The SSM2375CBZ-REEL is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and derate the power dissipation accordingly.
  • To troubleshoot issues with the SSM2375CBZ-REEL, start by checking the input voltage, output voltage, and current. Verify that the device is properly decoupled and the feedback network is correctly configured. Use an oscilloscope to check for oscillations or other anomalies. Consult the datasheet and application notes for guidance.
