SSM2517CBZ-R7 - Analog Devices

Description: PDM Digital Input, Mono 2.4 W Class-D Audio Amplifier

Download SSM2517CBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

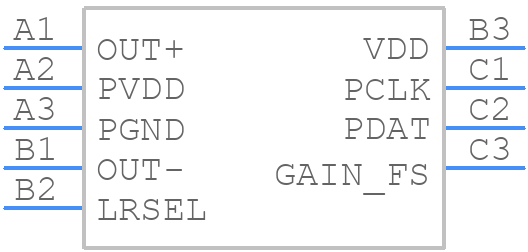

Symbol
SSM2517CBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2517CBZ-R7 - Analog Devices PCB footprint - BGA - BGA - CB-9-2
click to zoom
3D Models
SSM2517CBZ-R7 - Analog Devices - 3D model - BGA - CB-9-2
click to zoom

SSM2517CBZ-R7 Details

  • Manufacturer Part Number:

    SSM2517CBZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    9

  • Manufacturer Package Code:

    CB-9-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PBGA-B9

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

SSM2517CBZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2517CBZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
  • To ensure proper biasing, make sure to follow the recommended voltage supply and current requirements, and use a stable voltage reference. Also, ensure that the input signals are within the recommended range to avoid clipping or distortion.
  • The maximum power dissipation of the SSM2517CBZ-R7 is 1.4W. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power for extended periods.
  • The SSM2517CBZ-R7 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures. Ensure proper heat management and consider derating the device's power dissipation at high temperatures.
  • To troubleshoot issues with the SSM2517CBZ-R7, check the input signal quality, ensure proper power supply and biasing, and verify that the device is operated within its recommended specifications. Use an oscilloscope to visualize the output signal and identify any anomalies.
