SSM2518CBZ-R7 - Analog Devices

Description: ANALOG DEVICES - SSM2518CBZ-R7 - Audio Power Amplifier, 2 W, D, 2 Channel, 3.135V to 3.465V, 1.71V to 1.89V, WLCSP, 16 Pins

Download SSM2518CBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

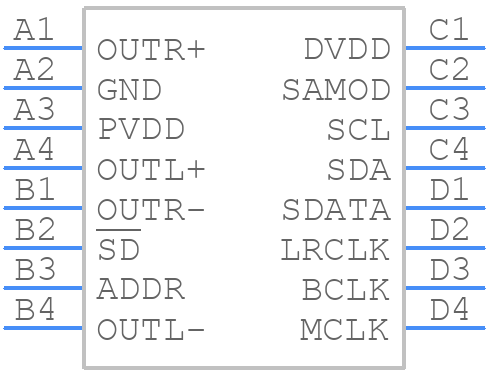

Symbol
SSM2518CBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2518CBZ-R7 - Analog Devices PCB footprint - BGA - BGA - CB-16-13
click to zoom
3D Models
SSM2518CBZ-R7 - Analog Devices - 3D model - BGA - CB-16-13
click to zoom

SSM2518CBZ-R7 Details

  • Manufacturer Part Number:

    SSM2518CBZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:54.814

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    2.20 X 2.20 MM, 0.50 MM PITCH, ROHS COMPLIANT, WLCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CB-16-13

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT ALSO OPERATES WITH 1.62-3.6V DIGITAL SUPPLY

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.21 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.5 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.66 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.62 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.21 mm

SSM2518CBZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2518CBZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
  • To ensure proper biasing, make sure to follow the recommended voltage supply and current requirements, and use a stable voltage reference. Additionally, ensure that the input signals are within the recommended range and that the output is properly terminated.
  • The maximum power dissipation of the SSM2518CBZ-R7 is typically around 1.4W. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power for extended periods.
  • To troubleshoot issues with the SSM2518CBZ-R7, start by checking the power supply and input signals for noise or distortion. Verify that the device is properly biased and that the output is properly terminated. Use an oscilloscope to visualize the input and output signals and identify any anomalies.
  • The SSM2518CBZ-R7 is rated for operation up to 125°C. However, high temperatures can affect the device's performance and reliability. When operating in high-temperature environments, ensure good airflow, use a heat sink if necessary, and consider derating the device's power dissipation.
