SSM2518CPZ-RL - Analog Devices

Description: Audio Amp Speaker 2-CH Stereo 2.5W Class-D 20-Pin LFCSP EP T/R

Download SSM2518CPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

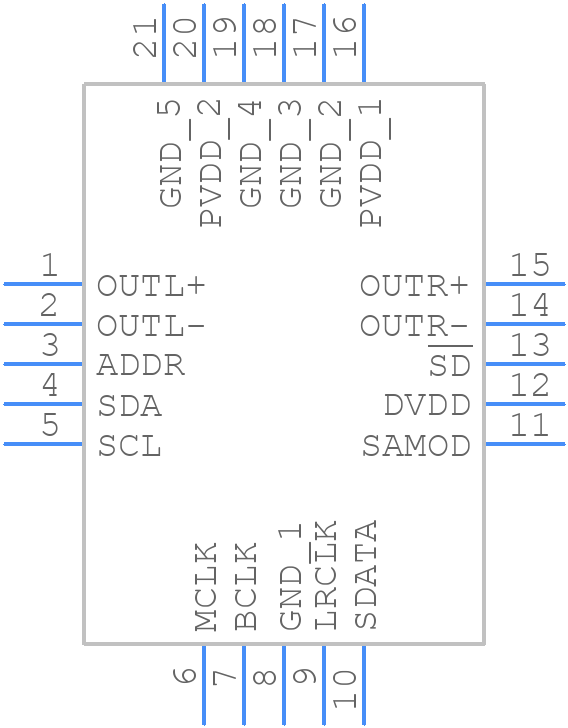

Symbol
SSM2518CPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2518CPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-8
click to zoom
3D Models
SSM2518CPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-8
click to zoom

SSM2518CPZ-RL Details

  • Manufacturer Part Number:

    SSM2518CPZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:54.816

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    MO-220-WGGD, 20 PIN

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT ALSO OPERATES WITH 1.62-3.6V DIGITAL SUPPLY

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.5 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.62 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

SSM2518CPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2518CPZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the power supply decoupling.
  • To ensure proper biasing, make sure to connect the VDD pin to a stable 5V power supply, and the VSS pin to a solid ground plane. Also, ensure that the input common-mode voltage is within the recommended range of 1.5V to 3.5V, and that the output load impedance is within the recommended range of 1kΩ to 10kΩ.
  • The maximum power dissipation of the SSM2518CPZ-RL is 500mW. However, it's recommended to keep the power dissipation below 300mW to ensure reliable operation and to prevent overheating.
  • The SSM2518CPZ-RL is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures, and the maximum power dissipation should be derated accordingly. It's recommended to consult the datasheet and application notes for more information on high-temperature operation.
  • To troubleshoot common issues with the SSM2518CPZ-RL, start by checking the PCB layout and ensuring that the device is properly biased and terminated. Also, check the input and output signals for any signs of distortion or oscillation, and verify that the device is operating within its recommended specifications. Consult the datasheet and application notes for more troubleshooting tips and techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSM2518CPZ-RL Overview

Use the download button to access the SSM2518CPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM25, or try a keyword search, such as Audio/Video Amplifiers
