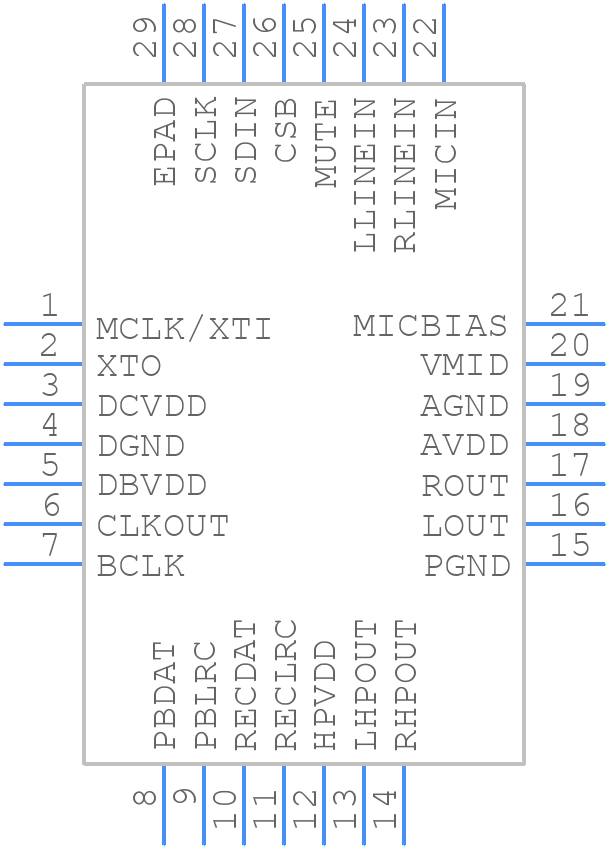

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SSM2603CPZ-R2
- Part Number SSM2603CPZ-R2
- Manufacturer Analog Devices
- Pin Count 29
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P500X500X100-29N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
SSM2603CPZ-R2 Details
-
Manufacturer Part Number:
SSM2603CPZ-R2
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFN
-
Package Description:
5 X 5 MM, ROHS COMPLIANT, MO-220VHHD-1, LFCSP-28
-
Pin Count:
28
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Filter:
YES
-
JESD-30 Code:
S-XQCC-N28
SSM2603CPZ-R2 Frequently Asked Questions (FAQs)
-
A good PCB layout for the SSM2603CPZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the audio input and output connectors. Additionally, it's recommended to use a low-ESR capacitor for the VDD pin and to minimize the length of the traces connected to the audio signals.
-
To optimize the gain setting, you need to consider the input signal level, the desired output signal level, and the noise floor of your system. The SSM2603CPZ-R2 has a gain range of -12 dB to 31.5 dB, so you can adjust the gain to achieve the desired signal-to-noise ratio. You may need to experiment with different gain settings and measure the output signal level and noise floor to find the optimal setting.
-
The maximum power dissipation of the SSM2603CPZ-R2 is 500 mW. This is specified in the datasheet, but it's essential to ensure that your PCB design and thermal management can handle this power dissipation to prevent overheating and ensure reliable operation.
-
Yes, the SSM2603CPZ-R2 is suitable for battery-powered devices due to its low power consumption. The device has a quiescent current of 2.5 mA, which is relatively low. However, you need to consider the overall power consumption of your system, including the audio codec, microcontroller, and other components, to ensure that the battery life meets your requirements.
-
To troubleshoot audio quality issues, start by checking the input signal level and quality, ensuring that it's within the specified range. Then, verify that the gain setting is optimal for your application. Check for noise, distortion, or oscillations in the output signal, and ensure that the PCB layout and component selection are correct. You may also need to use audio analysis tools, such as a spectrum analyzer or oscilloscope, to identify the root cause of the issue.
