SSM3302ACPZ-R7 - Analog Devices

Description: Audio Amp Speaker 2-CH Stereo 36.6W Class-D 40-Pin LFCSP EP T/R

Download SSM3302ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

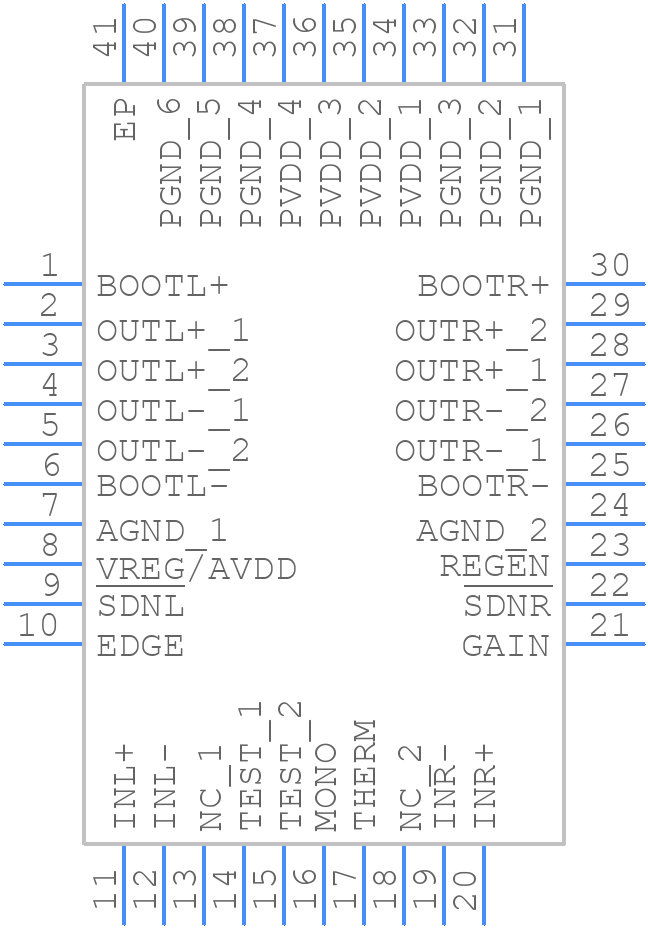

Symbol
SSM3302ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM3302ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Lead Free Chip Scale Package [LFCSP_WQ] 6 mm × 6 mm Body, Very Very Thin Quad (CP-40-10)
click to zoom
3D Models
SSM3302ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - 40-Lead Lead Free Chip Scale Package [LFCSP_WQ] 6 mm × 6 mm Body, Very Very Thin Quad (CP-40-10)
click to zoom

SSM3302ACPZ-R7 Details

  • Manufacturer Part Number:

    SSM3302ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

SSM3302ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM3302ACPZ-R7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the SSM3302ACPZ-R7, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VDD and GND pins, and a smaller capacitor (e.g., 100nF ceramic) between the VDD and GND pins for high-frequency decoupling. Also, ensure the power supply is clean and well-regulated.
  • The maximum allowed input voltage for the SSM3302ACPZ-R7 is 5.5V. Exceeding this voltage may damage the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the input voltage remains within the specified range.
  • To troubleshoot issues with the SSM3302ACPZ-R7, start by verifying the power supply voltage and ensuring it's within the specified range. Check the input and output signals using an oscilloscope to identify any anomalies. Also, review the PCB layout and ensure it's following the recommended layout guidelines. If issues persist, consult the datasheet and application notes or contact Analog Devices' support team.
  • The SSM3302ACPZ-R7 is rated for operation up to 125°C. However, it's essential to ensure proper thermal management, such as using a heat sink or a thermally conductive material, to prevent overheating. Consult the datasheet and application notes for more information on thermal management.
