SSM3302ACPZ - Analog Devices

Description: 2 ×10 W Filterless Class-D Stereo Audio Amplifier

Download SSM3302ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

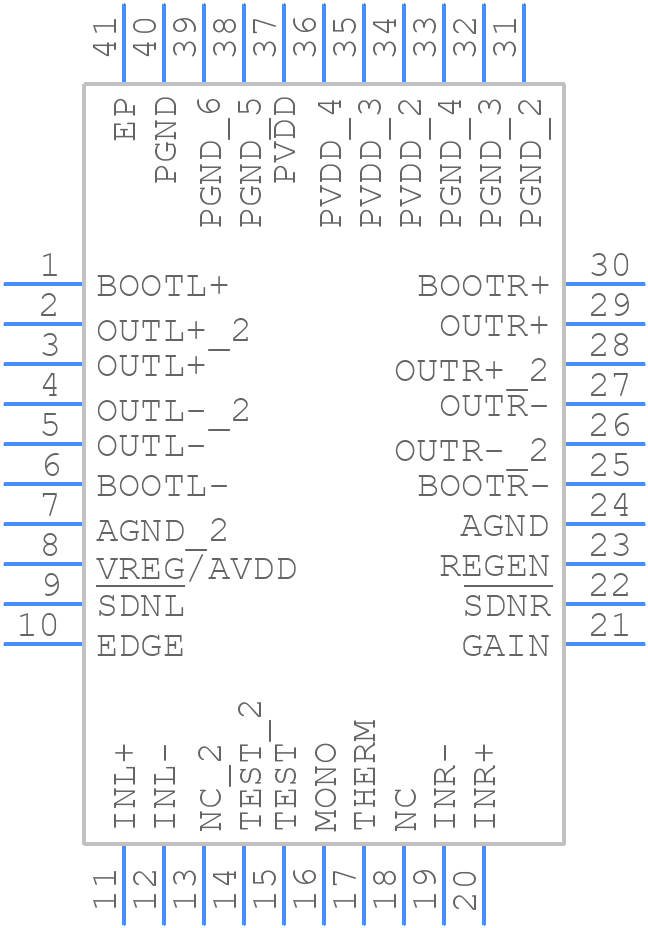

SSM3302ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM3302ACPZ - Analog Devices PCB footprint - Other - Other - QFN50P600X600X80-41N
click to zoom
3D Models
SSM3302ACPZ - Analog Devices - 3D model - Other - QFN50P600X600X80-41N
click to zoom

SSM3302ACPZ Details

  • Manufacturer Part Number:

    SSM3302ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

SSM3302ACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM3302ACPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise.
  • The SSM3302ACPZ requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The recommended clock frequency for the SSM3302ACPZ is between 10 MHz to 50 MHz. The clock signal should have a low jitter (< 100 ps) and a stable frequency to ensure optimal performance.
  • The SSM3302ACPZ has several configuration options, including gain settings, filter settings, and output modes. The optimal configuration depends on the specific application requirements. It's recommended to consult the datasheet and application notes for guidance on configuring the device for optimal performance.
  • The SSM3302ACPZ has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's recommended to keep the device within the specified operating temperature range (-40°C to 125°C) and to provide adequate heat sinking and airflow.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

SSM3302ACPZ Overview

Use the download button to access the SSM3302ACPZ schematic symbol, PCB footprint, and 3D model.
