SSM3515CCBZ-RL - Analog Devices

Description: Filterless digital input, mono Class-D amplifier Operates from a single 4.5 V to 17 V supply 31.3 W output power, 17 V supply, and 4 Ω load at 1% THD + N 107 dB A-weighted signal-to-noise ratio 93.3% efficiency into 8 Ω load at 12 V I 2 C control with up to 4 pin selectable slots/addresses Supports multiple serial data formats up to TDM16 Digital interface supports sample rates from 8 kHz to 192 kHz Flexible digital and analog gain adjustment Flexible supply monitoring AGC function 6.55 mA quies

Download SSM3515CCBZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

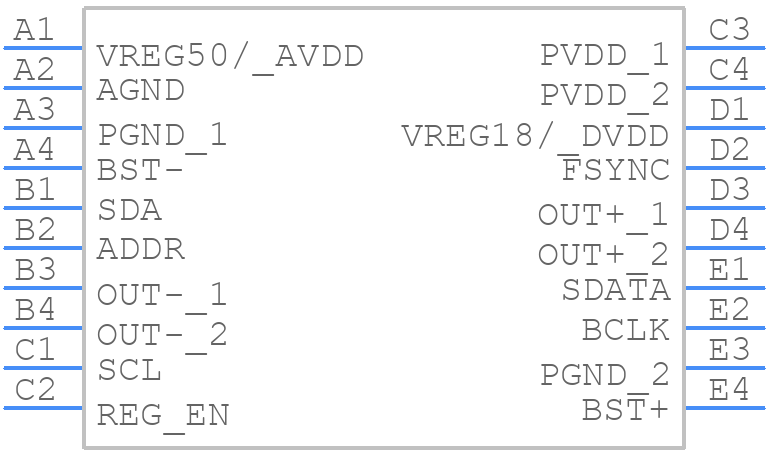

SSM3515CCBZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM3515CCBZ-RL - Analog Devices PCB footprint - BGA - BGA - (CB-20-2)_..
click to zoom
3D Models
SSM3515CCBZ-RL - Analog Devices - 3D model - BGA - (CB-20-2)_..
click to zoom

SSM3515CCBZ-RL Details

  • Manufacturer Part Number:

    SSM3515CCBZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CB-20-10

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    39.3 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Max (Vsup):

    17 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

SSM3515CCBZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM3515 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The SSM3515 requires a bias voltage of 1.65V to 3.6V. Ensure that the bias voltage is stable and noise-free, and that the device is operated within the recommended operating conditions. A voltage regulator or a low-dropout regulator can be used to generate the bias voltage.
  • The maximum power dissipation of the SSM3515 is 250mW. Ensure that the device is operated within this limit to prevent overheating and damage. A heat sink may be required for high-power applications.
  • The SSM3515 has a built-in filter, but additional filtering may be required to meet specific noise and ripple requirements. A low-pass filter or a pi-filter can be used to filter out noise and ripple in the output.
  • Yes, the SSM3515 is suitable for high-reliability applications. It is built with high-reliability materials and manufacturing processes, and is designed to meet the requirements of automotive, industrial, and medical applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSM3515CCBZ-RL Overview

Use the download button to access the SSM3515CCBZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM35, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
