SSM3582BCPZ - Analog Devices

Description: Audio Amp Speaker 1-CH Mono/2-CH Stereo 62.4W Class-D 40-Pin LFCSP EP Tray

Download SSM3582BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

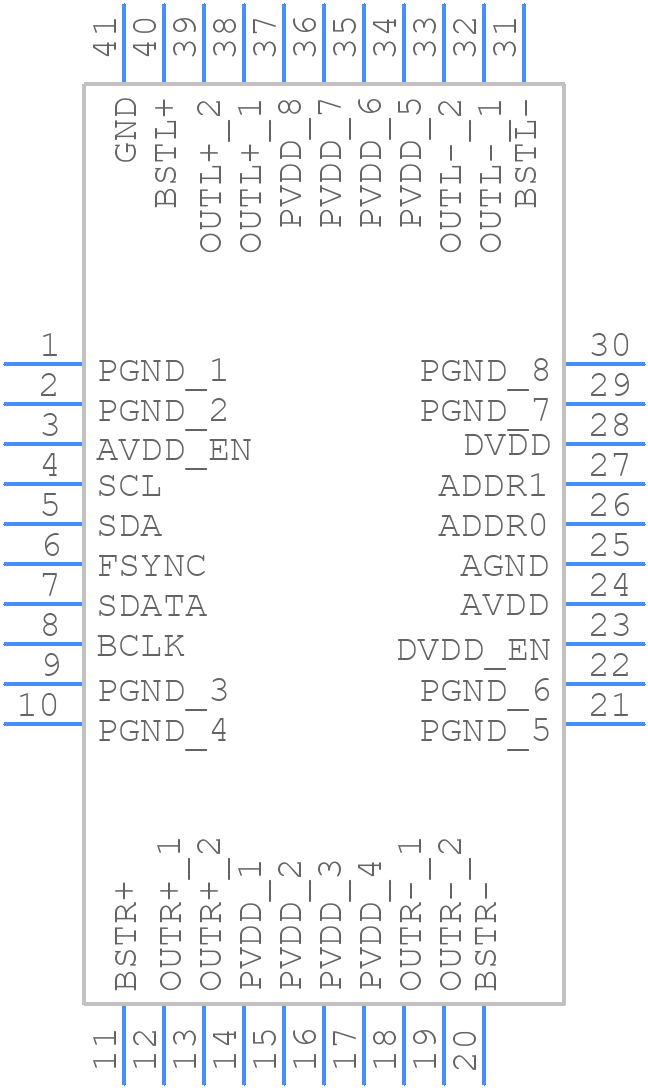

SSM3582BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM3582BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-7_2021
click to zoom
3D Models
SSM3582BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-7_2021
click to zoom

SSM3582BCPZ Details

  • Manufacturer Part Number:

    SSM3582BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-04-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    31.76 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

SSM3582BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM3582BCPZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the power supply should be well-regulated.
  • The maximum power dissipation of the SSM3582BCPZ is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated at higher temperatures.
  • The SSM3582BCPZ is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the power dissipation and ensure proper thermal management to ensure reliable operation.
  • To troubleshoot issues with the SSM3582BCPZ, start by verifying the power supply voltage and ensuring that it is within the recommended range. Check the input and output waveforms using an oscilloscope to identify any anomalies. Also, check the PCB layout and ensure that it follows the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.
