SSM3582BCPZR7 - Analog Devices

Description: ANALOG DEVICES - SSM3582BCPZR7 - Audio Power Amplifier, I2C, I2S, 14.4 W, D, 2 Channel, 4.5V to 16V, LFCSP, 40 Pins

Download SSM3582BCPZR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

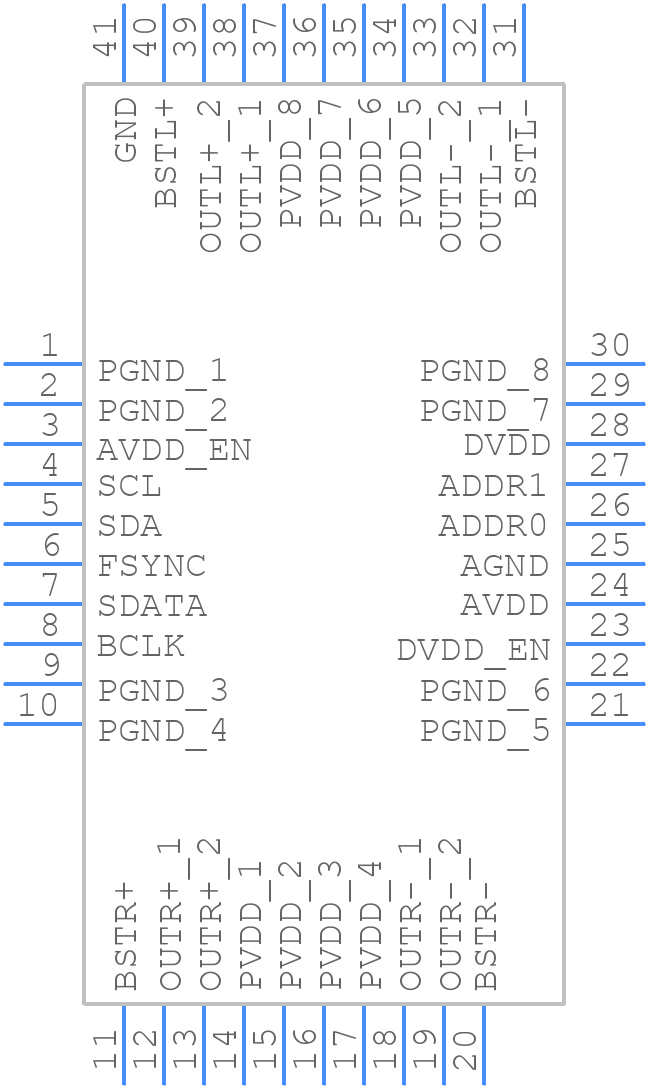

SSM3582BCPZR7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM3582BCPZR7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-7_2021
click to zoom
3D Models
SSM3582BCPZR7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-7_2021
click to zoom

SSM3582BCPZR7 Details

  • Manufacturer Part Number:

    SSM3582BCPZR7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-04-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    31.76 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

SSM3582BCPZR7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM3582BCPZR7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is properly sized and placed close to the device. Also, make sure the input and output traces are properly terminated, and the device is operated within its recommended operating conditions.
  • The maximum power dissipation of the SSM3582BCPZR7 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature.
  • The SSM3582BCPZR7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and ensure proper thermal management in high-temperature environments.
  • To troubleshoot issues with the SSM3582BCPZR7, start by verifying the device's input and output voltages, and checking for proper decoupling and termination. Use an oscilloscope to check for oscillations or noise on the output. Also, ensure that the device is operated within its recommended operating conditions.
