SSM3582BCPZRL - Analog Devices

Description: 2×, 31.76 W, Digital Input, Filterless Stereo Class-D Audio Amplifier

Download SSM3582BCPZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

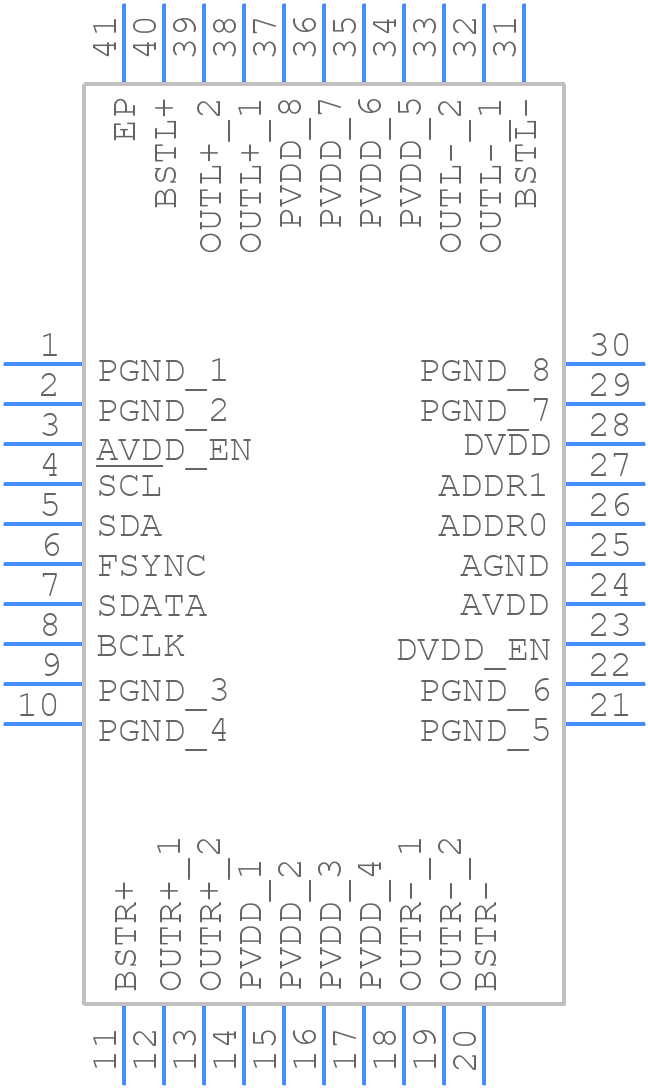

SSM3582BCPZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM3582BCPZRL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-7
click to zoom
3D Models
SSM3582BCPZRL - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-7
click to zoom

SSM3582BCPZRL Details

  • Manufacturer Part Number:

    SSM3582BCPZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-04-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    31.76 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

SSM3582BCPZRL Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM3582BCPZRL involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are properly selected, and the device is operated within its recommended operating conditions.
  • The maximum power dissipation of the SSM3582BCPZRL is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature.
  • The SSM3582BCPZRL is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider thermal management in your design.
  • To troubleshoot issues, start by verifying the power supply and input/output connections. Check for proper decoupling, and ensure that the device is operated within its recommended operating conditions. Use oscilloscopes and other diagnostic tools to identify any signal integrity issues or oscillations.
