Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
Toshiba recommends using a soldering iron with a temperature of 350°C or less, and a soldering time of 3 seconds or less. The device should be soldered using a fluxless soldering process.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it is recommended to keep the input voltage within the recommended operating range of 3.3V ± 10% to ensure reliable operation.
Toshiba recommends using ESD protection devices such as TVS diodes or ESD protection ICs on the input lines to protect the device from electrostatic discharge. Additionally, handling the device with an anti-static wrist strap or mat is recommended.
The recommended operating temperature range for the SSM3J16FS(TE85L,F) is -40°C to 85°C. However, the device can operate up to 125°C for a short period of time, but this may affect its reliability and lifespan.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SSM3J16FS(TE85L,F) Overview

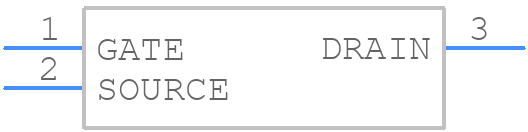

Use the download button to access the SSM3J16FS(TE85L,F) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM3J,
or try a keyword search, such as Small Signal Field-Effect Transistors
