SSM4567ACBZ-R7 - Analog Devices

Description: Audio Amplifiers 0.4mmPitchFilterless

Download SSM4567ACBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

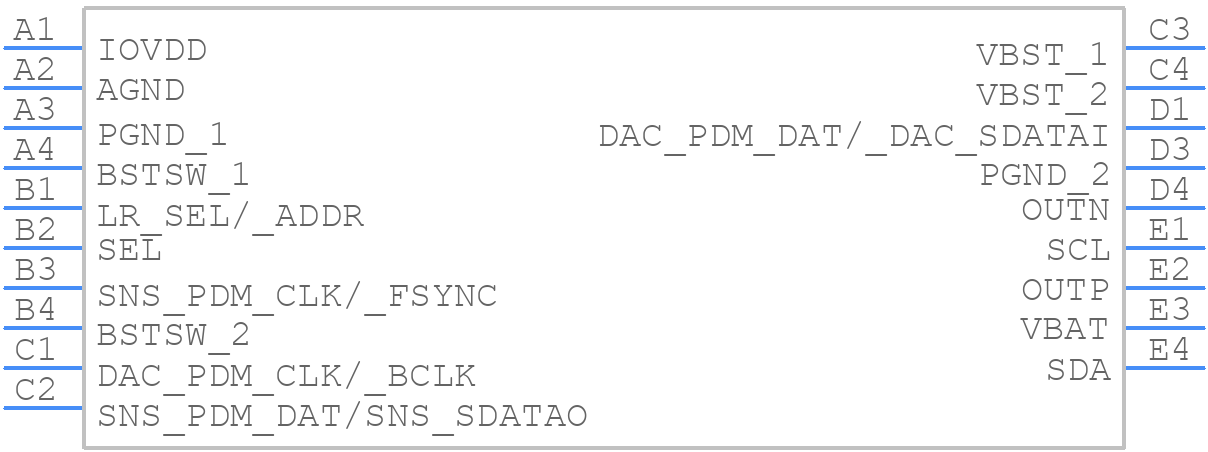

Symbol
SSM4567ACBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM4567ACBZ-R7 - Analog Devices PCB footprint - BGA - BGA - SSM4567ACBZ-R7-1
click to zoom
3D Models
SSM4567ACBZ-R7 - Analog Devices - 3D model - BGA - SSM4567ACBZ-R7-1
click to zoom

SSM4567ACBZ-R7 Details

  • Manufacturer Part Number:

    SSM4567ACBZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-19

  • Pin Count:

    19

  • Manufacturer Package Code:

    CB-19-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PBGA-B19

  • Length:

    2.1 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    3.17 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA19,5X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Max (Vsup):

    5.2 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.74 mm

SSM4567ACBZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM4567ACBZ-R7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is properly sized and placed close to the device. Also, ensure that the input and output traces are properly decoupled, and that the device is operated within its recommended operating conditions.
  • The maximum power dissipation of the SSM4567ACBZ-R7 is 1.4W. However, this can be affected by the operating conditions, such as ambient temperature and input voltage. It's recommended to calculate the power dissipation based on the specific application conditions.
  • The SSM4567ACBZ-R7 is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to derate the device's power dissipation and ensure proper thermal management in high-temperature applications.
  • To troubleshoot issues with the SSM4567ACBZ-R7, start by verifying the input and output voltages, and checking for proper decoupling and layout. Also, ensure that the device is operated within its recommended operating conditions, and that the output capacitor is properly sized and placed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSM4567ACBZ-R7 Overview

Use the download button to access the SSM4567ACBZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM45, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
