SSM6515BCBZRL7 - Analog Devices

Description: Ultra Low Power, Class-D Audio Amplifier

Download SSM6515BCBZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

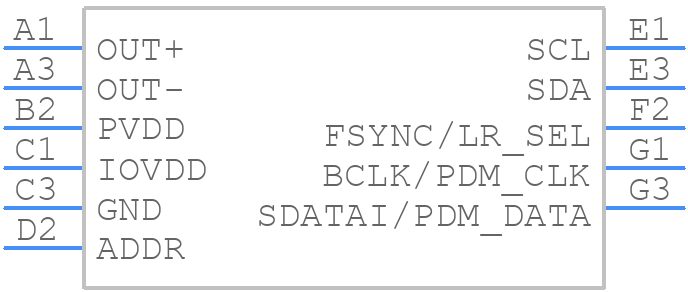

SSM6515BCBZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM6515BCBZRL7 - Analog Devices PCB footprint - Other - Other - SSM6515BCBZRL7-2
click to zoom
3D Models
SSM6515BCBZRL7 - Analog Devices - 3D model - Other - SSM6515BCBZRL7-2
click to zoom

SSM6515BCBZRL7 Details

  • Manufacturer Part Number:

    SSM6515BCBZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-11

  • Pin Count:

    11

  • Manufacturer Package Code:

    CB-11-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PBGA-G11

  • Length:

    1.444 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA11,3X6,14

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    1.98 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Width:

    0.984 mm

SSM6515BCBZRL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM6515BCBZRL7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the power supply decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, decouple the power supply pins with a 10uF capacitor and a 100nF capacitor in parallel.
  • The maximum power dissipation of the SSM6515BCBZRL7 is 1.4W. However, this can be limited by the thermal resistance of the package and the PCB. It's essential to ensure good thermal design and heat sinking to prevent overheating.
  • The SSM6515BCBZRL7 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal design and heat sinking to ensure reliable operation in high-temperature environments.
  • To troubleshoot issues with the SSM6515BCBZRL7, start by checking the power supply voltage and ensuring that it's within the recommended range. Then, verify that the input and output capacitors are properly connected and of high quality. Use an oscilloscope to check the output waveform and ensure that it's within the expected specifications.
