Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
Ensure that the device is operated within the recommended temperature range (−40°C to 150°C). Use a heat sink if necessary, and follow proper PCB design and layout guidelines to minimize thermal resistance.
The maximum allowed voltage on the input pins is 20V, but it's recommended to keep it below 18V to ensure reliable operation and prevent damage to the device.
Yes, the SSM6J216FE,LF is suitable for high-frequency switching applications up to 100 kHz. However, ensure that the device is properly bypassed and decoupled to minimize noise and ringing.
Toshiba recommends using ESD protection devices such as TVS diodes or ESD arrays on the input and output pins to prevent damage from electrostatic discharge.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SSM6J216FE,LF Overview

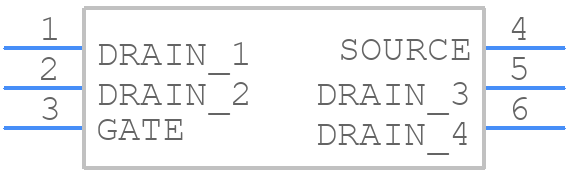

Use the download button to access the SSM6J216FE,LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM6J,
or try a keyword search, such as Small Signal Field-Effect Transistors
