SSM6J771G,LF - Toshiba

Description: MOSFET P-Ch SSM -5A -20V 12V VGSS 0.035Ohm

Download SSM6J771G,LF Model

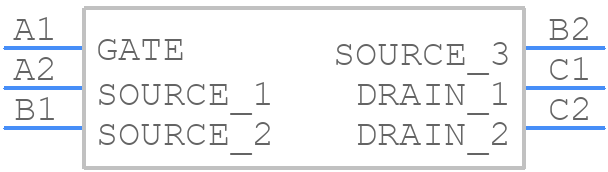

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SSM6J771G,LF - Toshiba PCB footprint - BGA - BGA - WCSP6
click to zoom
3D Models
SSM6J771G,LF - Toshiba  - 3D model - BGA - WCSP6
click to zoom

SSM6J771G,LF Details

  • Manufacturer Part Number:

    SSM6J771G,LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    5 A

  • Drain-source On Resistance-Max:

    0.035 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    120 pF

  • JESD-30 Code:

    R-PBGA-B6

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.6 W

  • Pulsed Drain Current-Max (IDM):

    10 A

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SSM6J771G,LF Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for SSM6J771G,LF is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF or larger output capacitor and a 1uF or larger input capacitor, and to keep the input voltage stable.
  • The maximum output current of SSM6J771G,LF is 1.5A.
  • To protect SSM6J771G,LF from overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power for extended periods.
  • Yes, SSM6J771G,LF is AEC-Q100 qualified and suitable for automotive applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSM6J771G,LF Overview

Use the download button to access the SSM6J771G,LF schematic symbol, PCB footprint, and 3D model.
