SSM6N62TU,LXHF - Toshiba

Description: MOSFET SMOS Low RON Dual Nc h Id:0.8A, Vdss: 20

Download SSM6N62TU,LXHF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

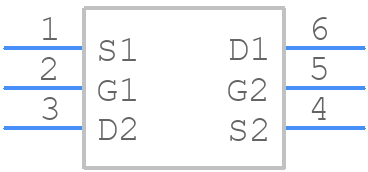

Symbol
SSM6N62TU,LXHF - Toshiba - PCB symbol
click to zoom
PCB Footprints
SSM6N62TU,LXHF - Toshiba PCB footprint - Other - Other - SSM6N62TU,LXHF-4
click to zoom
3D Models
SSM6N62TU,LXHF - Toshiba - 3D model - Other - SSM6N62TU,LXHF-4
click to zoom

SSM6N62TU,LXHF Details

  • Manufacturer Part Number:

    SSM6N62TU,LXHF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE AND RESISTOR

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    0.8 A

  • Drain-source On Resistance-Max:

    0.098 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    17 pF

  • JESD-30 Code:

    R-PDSO-F6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.5 W

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SSM6N62TU,LXHF Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, derate the device's power dissipation according to the temperature derating curve in the datasheet.
  • The maximum allowed voltage on the gate pin is ±20V, but it's recommended to keep it within ±15V to ensure reliable operation and prevent damage.
  • Yes, the SSM6N62TU,LXHF is suitable for high-frequency switching applications up to 1MHz. However, ensure proper layout and decoupling to minimize parasitic inductance and capacitance.
  • Follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation. Ensure that the device is stored in an anti-static bag or tube during transportation and storage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSM6N62TU,LXHF Overview

Use the download button to access the SSM6N62TU,LXHF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM6N, or try a keyword search, such as Small Signal Field-Effect Transistors
