SSQ-109-01-F-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

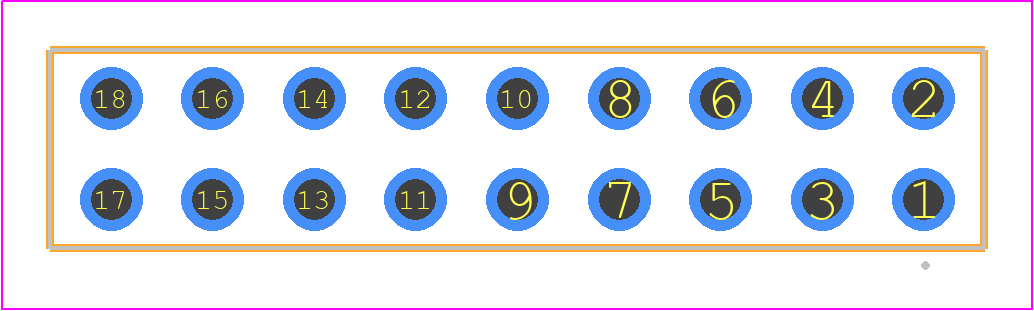

SSQ-109-01-F-D - SAMTEC PCB footprint - Other - Other - SSQ-109-XX-YYY-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SSQ-109-01-F-D
Part Number SSQ-109-01-F-D
Manufacturer SAMTEC
Pin Count 18
Part Category Connector
Package Category Other
Footprint Name Other - SSQ-109-XX-YYY-D
Released Date Jun 4, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SSQ-109-01-F-D Details

Manufacturer Part Number:
SSQ-109-01-F-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 1 Day
Manufacturer:
Samtec Inc
YTEOL:
9.1
Additional Feature:
TIGER BUY CONTACT
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD FLASH OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
6.3 A
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
18

SSQ-109-01-F-D Frequently Asked Questions (FAQs)

The recommended mating sequence for the SSQ-109-01-F-D connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the SSQ-109-01-F-D connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications such as aerospace, industrial, and automotive.
The maximum operating temperature for the SSQ-109-01-F-D connector is 125°C (257°F). However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
Yes, the SSQ-109-01-F-D connector is compatible with lead-free soldering processes. Samtec Inc. uses a lead-free finish on this connector, making it suitable for use in RoHS-compliant applications.
The typical contact resistance for the SSQ-109-01-F-D connector is 10 milliohms or less. This ensures low signal loss and reliable data transmission.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SSQ-109-01-F-D Overview

Use the download button to access the SSQ-109-01-F-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SSQ-1, or try a keyword search, such as Headers and Edge Type Connectors
