SSQ-110-23-F-D - SAMTEC

Description: 20 Position, .100" Tiger Buy™ Socket Strip, Square Tail

Download SSQ-110-23-F-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SSQ-110-23-F-D - SAMTEC - PCB symbol
click to zoom
PCB Footprints

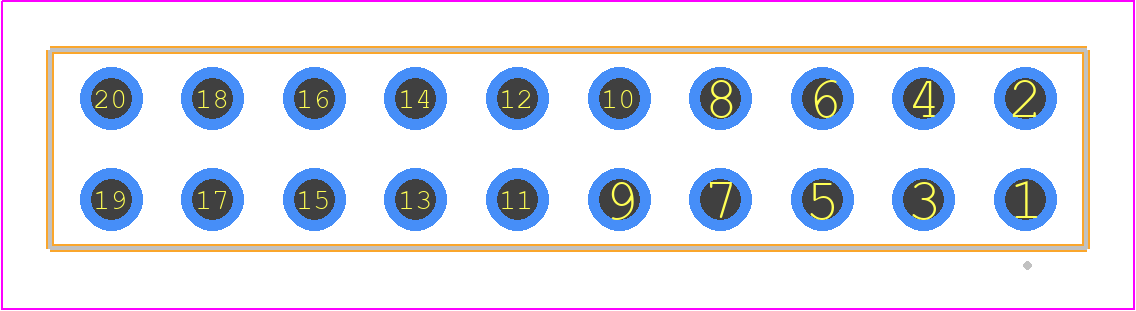

SSQ-110-23-F-D - SAMTEC PCB footprint - Other - Other - SSQ-110-XX-YYY-D
click to zoom
3D Models
SSQ-110-23-F-D - SAMTEC - 3D model - Other - SSQ-110-XX-YYY-D
click to zoom

SSQ-110-23-F-D Details

  • Manufacturer Part Number:

    SSQ-110-23-F-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 1 Day

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Additional Feature:

    TIGER BUY CONTACT

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    6.3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

SSQ-110-23-F-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the SSQ-110-23-F-D connector is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
  • Yes, the SSQ-110-23-F-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
  • The maximum operating temperature for the SSQ-110-23-F-D connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • The SSQ-110-23-F-D connector is not designed for use in wet or humid environments. Samtec recommends using their sealed or waterproof connectors, such as the IP67-rated SQ series, for applications that require environmental protection.
  • The recommended mating cycle for the SSQ-110-23-F-D connector is 500-1000 cycles, depending on the application and environmental conditions. Samtec recommends following their guidelines for connector mating and unmating to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSQ-110-23-F-D Overview

Use the download button to access the SSQ-110-23-F-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSQ-1, or try a keyword search, such as Headers and Edge Type Connectors
