SSW-105-06-F-D-LL footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

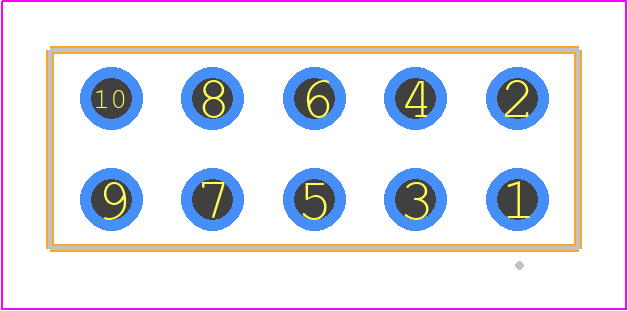

SSW-105-06-F-D-LL - SAMTEC PCB footprint - Other - Other - SSW-105-XX-YYY-D-LL

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SSW-105-06-F-D-LL
Part Number SSW-105-06-F-D-LL
Manufacturer SAMTEC
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - SSW-105-XX-YYY-D-LL
Released Date Jun 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SSW-105-06-F-D-LL Details

Manufacturer Part Number:
SSW-105-06-F-D-LL
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
Connector Type:
BOARD CONNECTOR
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
JESD-609 Code:
e3

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SSW-105-06-F-D-LL Overview

Use the download button to access the SSW-105-06-F-D-LL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SSW-1, or try a keyword search, such as Headers and Edge Type Connectors
