SSW-109-02-L-D-RA - SAMTEC

Description: .100" Tiger Buy™ Socket Strip, positions per row, row

Download SSW-109-02-L-D-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

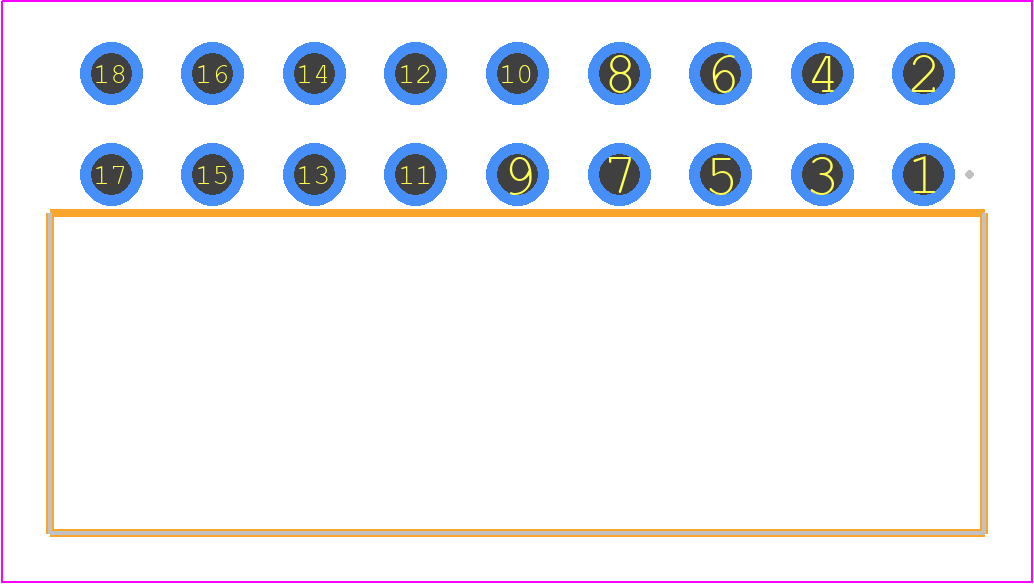

SSW-109-02-L-D-RA - SAMTEC PCB footprint - Other - Other - SSW-109-XX-YYY-D-RA
click to zoom
3D Models
SSW-109-02-L-D-RA - SAMTEC  - 3D model - Other - SSW-109-XX-YYY-D-RA
click to zoom

SSW-109-02-L-D-RA Details

  • Manufacturer Part Number:

    SSW-109-02-L-D-RA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Additional Feature:

    TIGER BUY CONTACT

  • Body Breadth:

    0.195 inch

  • Body Depth:

    0.435 inch

  • Body Length:

    0.92 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    4.7 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    18

  • UL Flammability Code:

    94V-0

SSW-109-02-L-D-RA Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) as per Samtec's application notes.
  • Yes, the SSW-109-02-L-D-RA connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
  • The maximum operating temperature for the SSW-109-02-L-D-RA connector is 125°C (257°F) as per Samtec's datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
  • The SSW-109-02-L-D-RA connector is not sealed and is not recommended for use in humid or wet environments. If exposure to moisture is a concern, consider using a sealed or waterproof connector or applying additional protection measures.
  • The recommended mating cycle for the SSW-109-02-L-D-RA connector is 500-1000 cycles as per Samtec's application notes. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSW-109-02-L-D-RA Overview

Use the download button to access the SSW-109-02-L-D-RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSW-1, or try a keyword search, such as Headers and Edge Type Connectors

Parts related to SSW-109-02-L-D-RA

Showing 0 results

SSW-109-02-L-D-RA Alternates

Showing results

Image Part Number Model
Part Image SSW-109-02-G-D-RA Samtec Inc

Board Connector, 18 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Socket

Part Image SSW-109-02-S-D-RA Samtec Inc

Board Connector, 18 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Socket

Part Image SSW-109-02-F-D-RA Samtec Inc

Board Connector, 18 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Socket

Part Image SSW-109-02-H-D-RA Samtec Inc

Board Connector, 18 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Socket

Part Image SSW-109-02-FM-D-RA Samtec Inc

Board Connector, 18 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Socket

For a full list of alternate parts for SSW-109-02-L-D-RA, check out Findchips.com
