SSW-114-02-F-D-RA-LL - SAMTEC

Description: .100" Tiger Buy™ Socket Strip, positions per row, row

Download SSW-114-02-F-D-RA-LL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SSW-114-02-F-D-RA-LL - SAMTEC - PCB symbol
click to zoom

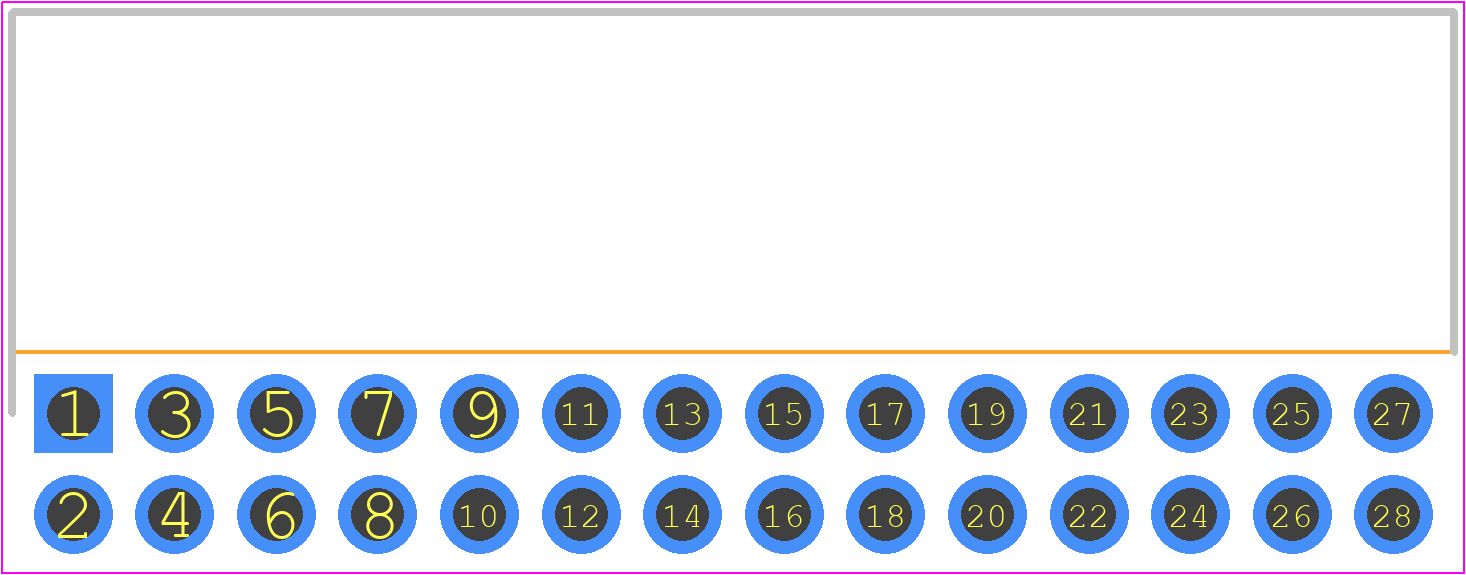

PCB Footprints
SSW-114-02-F-D-RA-LL - SAMTEC PCB footprint - Header, Receptacle - Right Angle PTH Box - Header, Receptacle - Right Angle PTH Box - SSW-114-02-F-D-RA-LL
click to zoom
3D Models
SSW-114-02-F-D-RA-LL - SAMTEC - 3D model - Header, Receptacle - Right Angle PTH Box - SSW-114-02-F-D-RA-LL
click to zoom

SSW-114-02-F-D-RA-LL Details

  • Manufacturer Part Number:

    SSW-114-02-F-D-RA-LL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.195 inch

  • Body Depth:

    0.435 inch

  • Body Length:

    1.42 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Rated Current (Signal):

    4.7 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    28

  • UL Flammability Code:

    94V-0

SSW-114-02-F-D-RA-LL Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) as per Samtec's application notes.
  • Yes, the SSW-114-02-F-D-RA-LL connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to ensure proper screw torque to prevent connector damage.
  • The maximum operating temperature for the SSW-114-02-F-D-RA-LL connector is 125°C (257°F) as per Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • The SSW-114-02-F-D-RA-LL connector is not sealed and is not recommended for use in humid or wet environments. If exposure to moisture is unavoidable, consider using a connector with a higher IP rating or applying a conformal coating to protect the connector.
  • The mating cycle life of the SSW-114-02-F-D-RA-LL connector is 500 cycles minimum as per Samtec's datasheet. However, this can vary depending on the application and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSW-114-02-F-D-RA-LL Overview

Use the download button to access the SSW-114-02-F-D-RA-LL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSW-1, or try a keyword search, such as Headers and Edge Type Connectors
