SSW-120-06-H-D - SAMTEC

Description: 40 Position, .100" Tiger Buy™ Socket Strip

Download SSW-120-06-H-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SSW-120-06-H-D - SAMTEC - PCB symbol
click to zoom
PCB Footprints

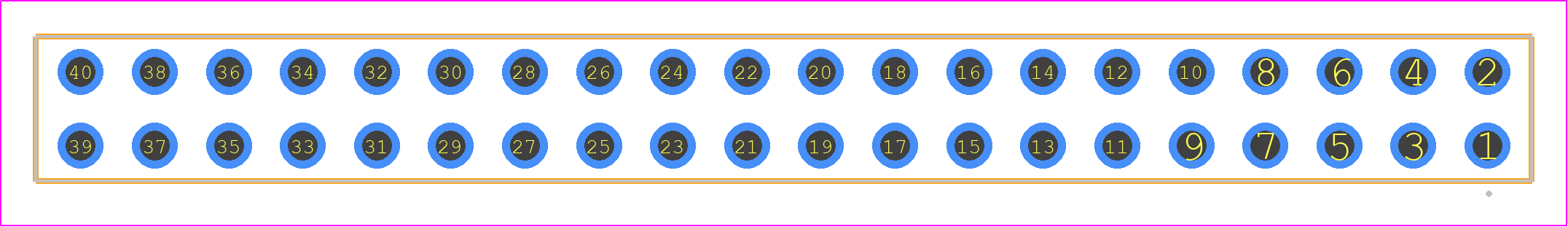

SSW-120-06-H-D - SAMTEC PCB footprint - Other - Other - SSW-120-XX-YYY-D
click to zoom
3D Models
SSW-120-06-H-D - SAMTEC - 3D model - Other - SSW-120-XX-YYY-D
click to zoom

SSW-120-06-H-D Details

  • Manufacturer Part Number:

    SSW-120-06-H-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.195 inch

  • Body Depth:

    0.335 inch

  • Body Length:

    2.02 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (30)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Rated Current (Signal):

    4.7 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

SSW-120-06-H-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screw-down mechanism is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure mating and prevent damage to the connector.
  • Yes, the SSW-120-06-H-D is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with their application engineers for specific requirements.
  • The SSW-120-06-H-D is rated for operating temperatures from -55°C to 125°C and can withstand humidity up to 95% RH. However, it's recommended to consult with Samtec's application engineers for specific environmental requirements and to consider additional sealing or coating options if necessary.
  • The SSW-120-06-H-D has a mating cycle life of at least 500 cycles, depending on the application and environmental conditions. It's recommended to consult with Samtec's application engineers for specific requirements and to consider testing the connector in the actual application.
  • The SSW-120-06-H-D is designed for use with standard 1.57 mm (0.062 in) thick PCBs. However, it can be used with other PCB thicknesses or materials, but it's recommended to consult with Samtec's application engineers to ensure compatibility and to consider any necessary modifications or adjustments.
