SSW-120-06-L-D - SAMTEC

Description: 40 Position, .100" Tiger Buy™ Socket Strip

Download SSW-120-06-L-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

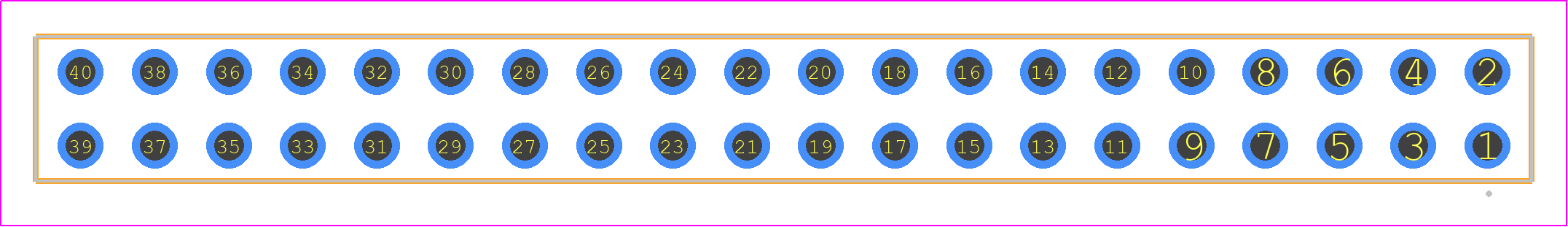

SSW-120-06-L-D - SAMTEC PCB footprint - Other - Other - SSW-120-XX-YYY-D
click to zoom
3D Models
SSW-120-06-L-D - SAMTEC  - 3D model - Other - SSW-120-XX-YYY-D
click to zoom

SSW-120-06-L-D Details

  • Manufacturer Part Number:

    SSW-120-06-L-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Additional Feature:

    TIGER BUY CONTACT

  • Body Breadth:

    0.195 inch

  • Body Depth:

    0.335 inch

  • Body Length:

    2.02 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1410VAC V

  • Durability:

    100 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    VECTRA E130I

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    4.7 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

SSW-120-06-L-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure secure mating and prevent damage to the connector.
  • Yes, the SSW-120-06-L-D connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
  • The maximum operating temperature for the SSW-120-06-L-D connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • Yes, the SSW-120-06-L-D connector is compatible with lead-free soldering processes. Samtec recommends following the recommended soldering profile and guidelines to ensure reliable connections.
  • The SSW-120-06-L-D connector is not designed for use in wet or humid environments. If exposure to moisture is a concern, consider using a connector with a higher IP rating or applying a conformal coating to protect the connector.
