SSW-125-01-F-D-LL - SAMTEC

Description: 50 Position, .100" Tiger Buy™ Socket Strip

Download SSW-125-01-F-D-LL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SSW-125-01-F-D-LL - SAMTEC - PCB symbol
click to zoom

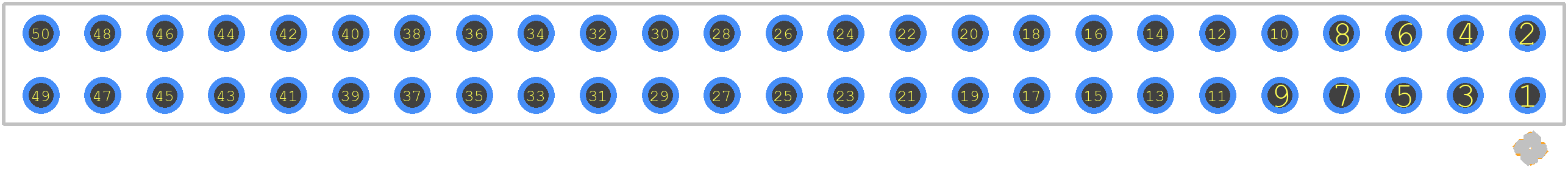

PCB Footprints
SSW-125-01-F-D-LL - SAMTEC PCB footprint - Other - Other - SAMTEC_SSW-125-01-F-D-LL
click to zoom

SSW-125-01-F-D-LL Details

  • Manufacturer Part Number:

    SSW-125-01-F-D-LL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.195 inch

  • Body Depth:

    0.335 inch

  • Body Length:

    2.52 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Durability:

    100 Cycles

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    3u inch

  • Rated Current (Signal):

    6.3 A

  • Reference Standard:

    UL, CSA

  • Terminal Length:

    0.104 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

SSW-125-01-F-D-LL Frequently Asked Questions (FAQs)

  • The recommended mating sequence for SSW-125-01-F-D-LL is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the SSW-125-01-F-D-LL is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
  • The SSW-125-01-F-D-LL is rated for operating temperatures ranging from -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and Samtec's application notes for specific guidance on using this connector in harsh environments.
  • The recommended torque for the screw locks on SSW-125-01-F-D-LL is 0.5-1.5 in-lbs (0.056-0.169 Nm). Over-torquing can damage the connector, so it's essential to follow the recommended torque specification.
  • The SSW-125-01-F-D-LL has a standard mating height of 5mm and a stack height of 12.5mm. While it's possible to use this connector with different mating heights or stack heights, it's essential to consult with Samtec's application engineers to ensure compatibility and feasibility.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSW-125-01-F-D-LL Overview

Use the download button to access the SSW-125-01-F-D-LL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SSW-1, or try a keyword search, such as Headers and Edge Type Connectors
