SSW-141-05-SM-S-RA - SAMTEC

Description: 41 Position, Tiger Buy™ Socket Strip with PCB Tails, 0.100" Pitch

Download SSW-141-05-SM-S-RA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SSW-141-05-SM-S-RA model

Email notifications will be applied after download.

Send part feedback

Symbol

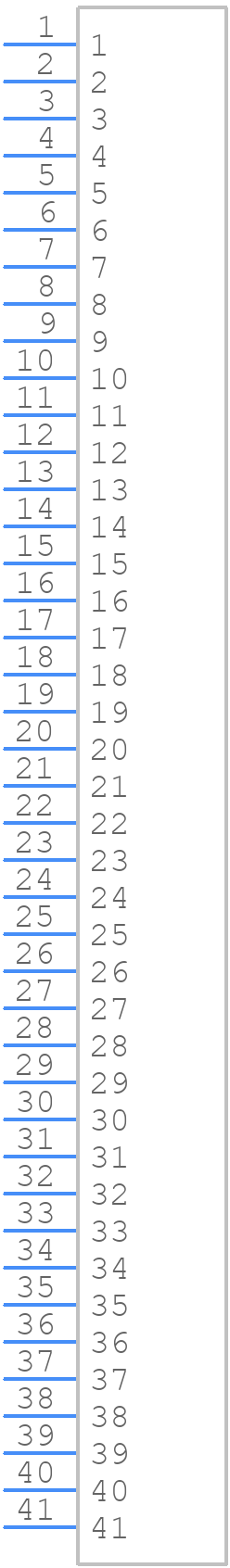

SSW-141-05-SM-S-RA - SAMTEC - PCB symbol

PCB Footprints

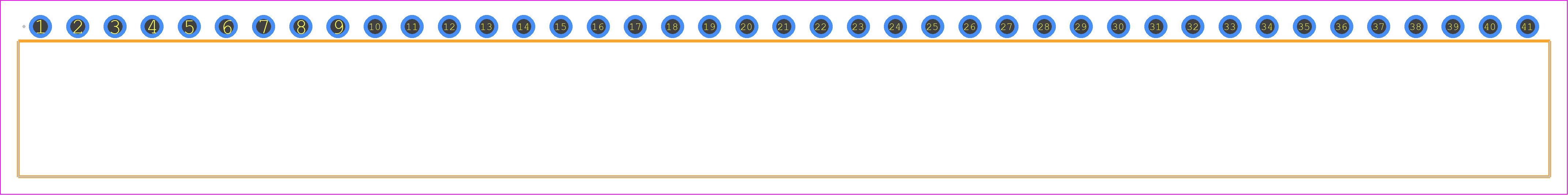

SSW-141-05-SM-S-RA - SAMTEC PCB footprint - Other - Other - SSW-141-XX-YYY-S-RA

Datasheet Download Datasheet
Stock & Prices Price & Stock for SSW-141-05-SM-S-RA
Part Number SSW-141-05-SM-S-RA
Manufacturer SAMTEC
Pin Count 41
Part Category Connector
Package Category Other
Footprint Name Other - SSW-141-XX-YYY-S-RA
Released Date Jun 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SSW-141-05-SM-S-RA Details

Manufacturer Part Number:
SSW-141-05-SM-S-RA
Manufacturer:
Samtec Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SSW-141-05-SM-S-RA Overview

Use the download button to access the SSW-141-05-SM-S-RA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SSW-1, or try a keyword search
