ST10F269Z2Q6 - STMicroelectronics

ST10F269Z2Q6 Details

• Manufacturer Part Number:

  ST10F269Z2Q6

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

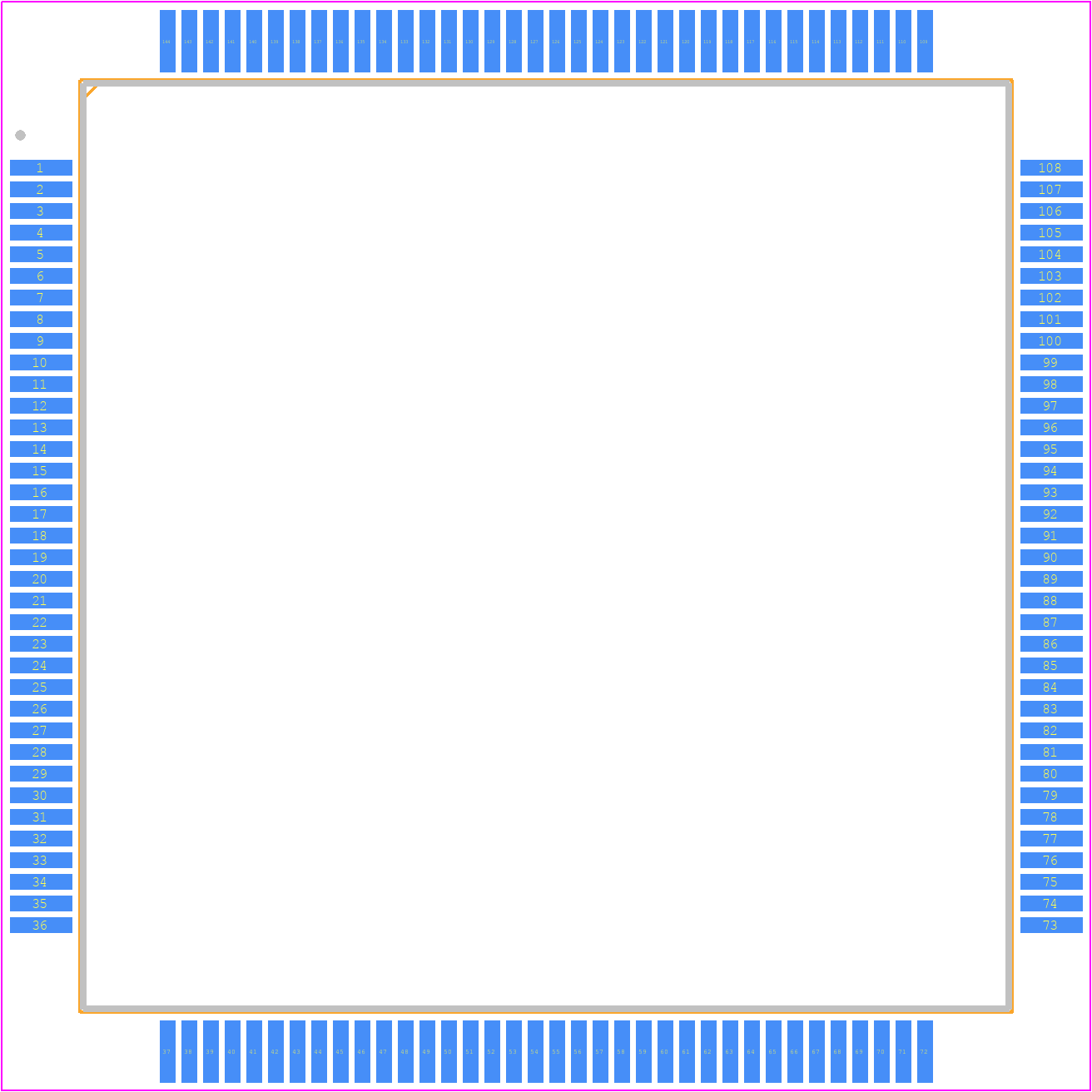

• Package Description:

  28 X 28 MM, PLASTIC, QFP-144

• Pin Count:

  144

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.20

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Has ADC:

  YES

• Address Bus Width:

  24

• Bit Size:

  16

• Boundary Scan:

  YES

• CPU Family:

  ST10

• Clock Frequency-Max:

  80 MHz

• DAC Channels:

  YES

• DMA Channels:

  NO

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G144

• JESD-609 Code:

  e3

• Length:

  28 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  111

• Number of Terminals:

  144

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP144,1.2SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• RAM (bytes):

  12288

• ROM (words):

  262144

• ROM Programmability:

  FLASH

• Seated Height-Max:

  4.07 mm

• Speed:

  40 MHz

• Supply Current-Max:

  120 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  28 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
