ST2-DC3V-F Frequently Asked Questions (FAQs)

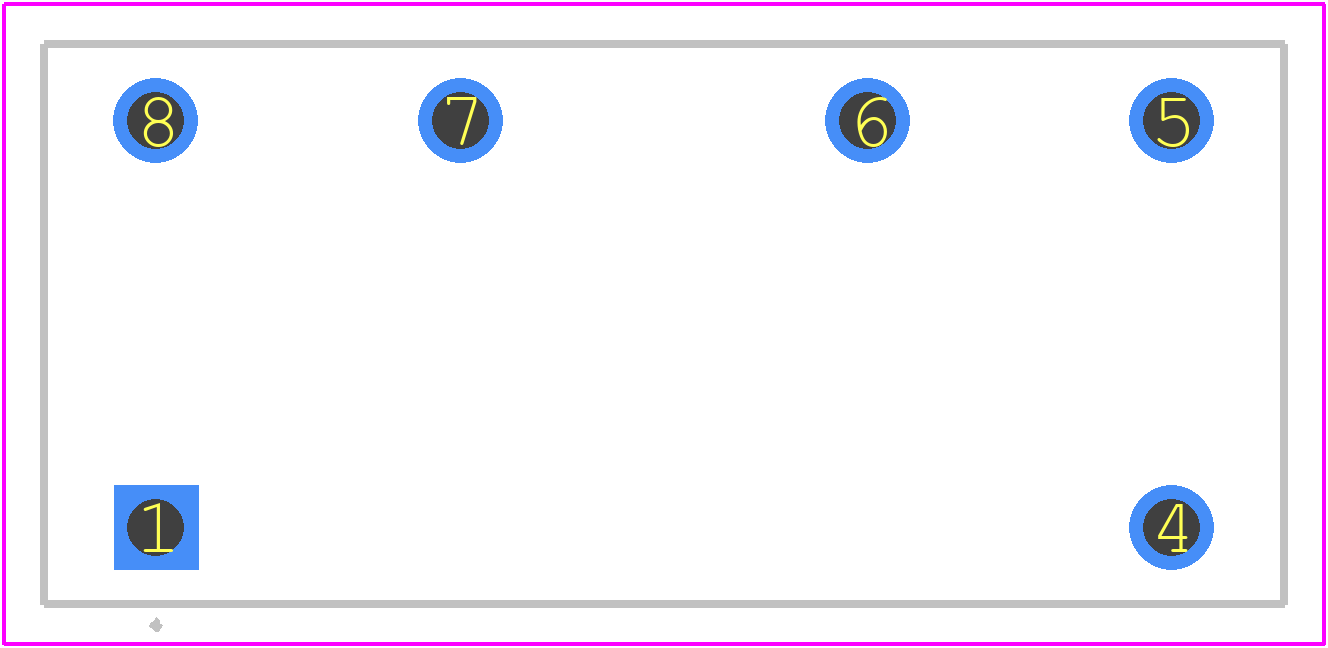

• What is the recommended PCB layout and land pattern for the ST2-DC3V-F relay?
  Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
• How do I handle the relay's high inrush current during switching?
  To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver IC with built-in current limiting to reduce the inrush current.
• What is the relay's operating temperature range, and how does it affect its performance?
  The ST2-DC3V-F relay has an operating temperature range of -40°C to 85°C. As the temperature increases, the relay's contact resistance and coil resistance may increase, affecting its performance. Ensure that the relay is operated within the specified temperature range to maintain its reliability and performance.
• How do I ensure the relay's contacts are clean and free from contamination?
  To ensure the relay's contacts are clean and free from contamination, follow proper handling and storage procedures. Avoid touching the relay's contacts, and use a soft brush or compressed air to remove any debris. Apply a contact cleaner or lubricant as recommended by Panasonic to maintain the relay's performance.
• What is the relay's expected lifespan, and how can I extend its lifetime?
  The ST2-DC3V-F relay's expected lifespan is dependent on various factors, including operating conditions, load type, and switching frequency. To extend its lifetime, ensure proper operating conditions, avoid excessive switching, and use a suitable relay driver circuit. Regular maintenance and inspection can also help identify potential issues before they affect the relay's performance.
