Part Image

ST24C16M3 - STMicroelectronics

Description: 16 Kbit Serial I2C Bus EEPROM 4.5V to 5.5V SO8 150mil Width –40 to 125 °C

Download ST24C16M3 Model

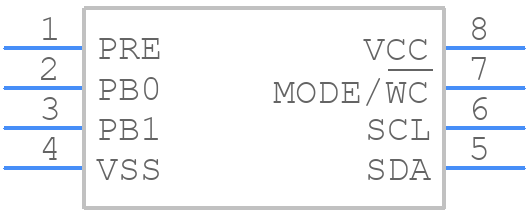

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ST24C16M3 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8 – 8-lead plastic small outline
click to zoom
3D Models
ST24C16M3 - STMicroelectronics  - 3D model - Small Outline Packages - SO8 – 8-lead plastic small outline
click to zoom

ST24C16M3 Details

  • Manufacturer Part Number:

    ST24C16M3

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Reach Compliance Code:

    Not_compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    0.1 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010MMMR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2KX8

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.0001 A

  • Supply Current-Max:

    0.002 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • Write Cycle Time-Max (tWC):

    10 ms

  • Write Protection:

    SOFTWARE

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST24C16M3 Overview

Use the download button to access the ST24C16M3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST24C, or try a keyword search, such as EEPROMs

Parts related to ST24C16M3

Showing 0 results

ST24C16M3 Alternates

Showing results

Image Part Number Model
Part Image ST24C16M3TR STMicroelectronics

2KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8
