ST25DV02K-W1R8S3 - STMicroelectronics

Description: Dynamic NFC/RFID tag IC with up to two PWM outputs and 2-Kbit EEPROM

Download ST25DV02K-W1R8S3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

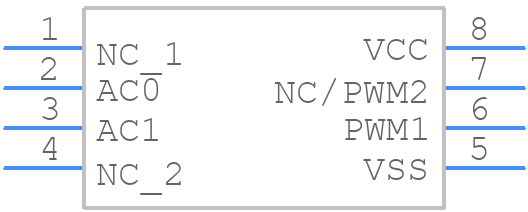

Symbol
ST25DV02K-W1R8S3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25DV02K-W1R8S3 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
ST25DV02K-W1R8S3 - STMicroelectronics - 3D model - Small Outline Packages - SO-8
click to zoom

ST25DV02K-W1R8S3 Details

  • Manufacturer Part Number:

    ST25DV02K-W1R8S3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

ST25DV02K-W1R8S3 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ST25DV02K-W1R8S3 is 13.56 MHz, which is the typical frequency for NFC and HF RFID applications.
  • The ST25DV02K-W1R8S3 has a minimum data retention of 50 years and can withstand up to 100,000 write cycles, making it suitable for long-term data storage and frequent updates.
  • The typical current consumption of the ST25DV02K-W1R8S3 is around 1.5 mA in read mode and 5 mA in write mode, making it suitable for battery-powered devices.
  • Yes, the ST25DV02K-W1R8S3 is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a tolerance for humidity and vibration.
  • The ST25DV02K-W1R8S3 has built-in security features such as 32-bit password protection, data encryption, and a secure authentication protocol to prevent unauthorized access and data tampering.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST25DV02K-W1R8S3 Overview

Use the download button to access the ST25DV02K-W1R8S3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST25D, or try a keyword search, such as Other Consumer ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
