ST25DV04K-IER8C3 - STMicroelectronics

Description: RFID Transponders 4-Kbit Dynamic NFC/RFID tag NFC Forum type V with I2C interface, fast transfer mode and energy harvesting

Download ST25DV04K-IER8C3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

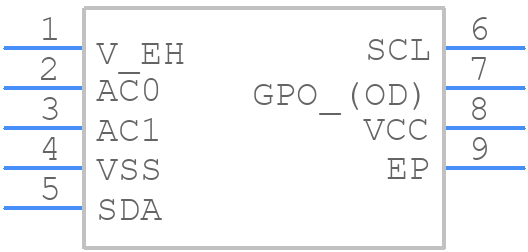

Symbol
ST25DV04K-IER8C3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25DV04K-IER8C3 - STMicroelectronics PCB footprint - Other - Other - UFDFPN8_3
click to zoom
3D Models
ST25DV04K-IER8C3 - STMicroelectronics - 3D model - Other - UFDFPN8_3
click to zoom

ST25DV04K-IER8C3 Details

  • Manufacturer Part Number:

    ST25DV04K-IER8C3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Memory IC Type:

    MEMORY CIRCUIT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

ST25DV04K-IER8C3 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ST25DV04K-IER8C3 is 1.67 MHz, as specified in the datasheet. However, it's recommended to operate at a frequency of 1.62 MHz or lower to ensure reliable communication.
  • The ST25DV04K-IER8C3 uses a 16-bit CRC calculation. You can use the CRC-CCITT (0x1021) polynomial to calculate the CRC. The datasheet provides an example of the CRC calculation in the 'Data Integrity' section.
  • The recommended antenna design for the ST25DV04K-IER8C3 is a coil antenna with a diameter of 30-40 mm and 3-5 turns. The datasheet provides more information on antenna design and layout considerations.
  • The ST25DV04K-IER8C3 has a built-in password protection feature. You can set a 32-bit password using the 'PWD' register. Once set, the password must be sent before any write operation to the device. Refer to the datasheet for more information on password protection.
  • The typical current consumption of the ST25DV04K-IER8C3 is around 1.5 mA in read mode and 2.5 mA in write mode, as specified in the datasheet. However, the actual current consumption may vary depending on the operating frequency, data transfer rate, and other factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST25DV04K-IER8C3 Overview

Use the download button to access the ST25DV04K-IER8C3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST25D, or try a keyword search, such as Other Memory ICs
