ST25DV04KC-JF8D3 - STMicroelectronics

Description: Dynamic NFC/RFID tag IC with 4-, 16-, or 64-Kbit EEPROM, fast transfer mode capability, and optimized I2C

Download ST25DV04KC-JF8D3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

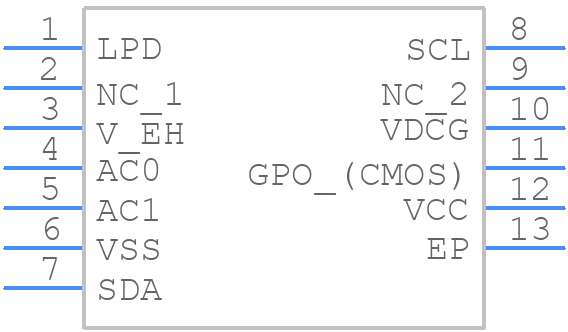

Symbol
ST25DV04KC-JF8D3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25DV04KC-JF8D3 - STMicroelectronics PCB footprint - Other - Other - UFDFPN12
click to zoom
3D Models
ST25DV04KC-JF8D3 - STMicroelectronics - 3D model - Other - UFDFPN12
click to zoom

ST25DV04KC-JF8D3 Details

  • Manufacturer Part Number:

    ST25DV04KC-JF8D3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-609 Code:

    e4

  • Memory IC Type:

    NFC/RFID TAGS AND TRANSPONDERS

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    12 V

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

ST25DV04KC-JF8D3 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ST25DV04KC-JF8D3 is 13.56 MHz, as it is an NFC/RFID tag IC.
  • Yes, the ST25DV04KC-JF8D3 can be used in a passive mode, where it harvests energy from the RF field and does not require an external power supply.
  • The minimum operating temperature range of the ST25DV04KC-JF8D3 is -40°C, and the maximum operating temperature range is 85°C.
  • Yes, the ST25DV04KC-JF8D3 is compliant with ISO/IEC 14443A, ISO/IEC 18092, and NFC Forum specifications.
  • The typical current consumption of the ST25DV04KC-JF8D3 is around 1.5 mA, depending on the operating mode and frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST25DV04KC-JF8D3 Overview

Use the download button to access the ST25DV04KC-JF8D3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST25D, or try a keyword search, such as Other Memory ICs
