ST25DV16KC-JF6D3 - STMicroelectronics

Description: Dynamic NFC/RFID tag IC with 4-, 16-, or 64-Kbit EEPROM, fast transfer mode capability, and optimized I2C

Download ST25DV16KC-JF6D3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

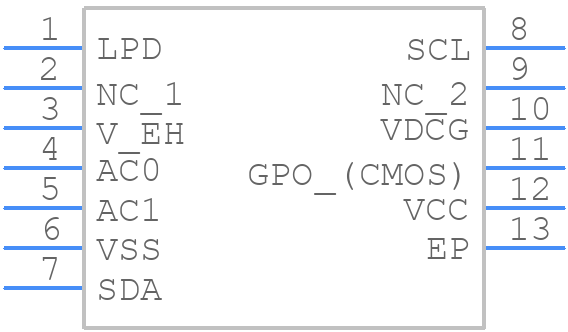

Symbol
ST25DV16KC-JF6D3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25DV16KC-JF6D3 - STMicroelectronics PCB footprint - Other - Other - UFDFPN12
click to zoom
3D Models
ST25DV16KC-JF6D3 - STMicroelectronics - 3D model - Other - UFDFPN12
click to zoom

ST25DV16KC-JF6D3 Details

  • Manufacturer Part Number:

    ST25DV16KC-JF6D3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UFDFPN-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    NFC/RFID TAGS AND TRANSPONDERS

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ST25DV16KC-JF6D3 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ST25DV16KC-JF6D3 is 1 MHz, as specified in the datasheet. However, it's recommended to operate at a frequency of 400 kHz or lower to ensure reliable communication.
  • The ST25DV16KC-JF6D3 has a built-in power-on reset (POR) circuit that resets the device when the power supply voltage (VCC) rises above the POR threshold (typically 1.5 V). To handle POR, ensure that the VCC supply is stable and within the recommended operating range before attempting to communicate with the device.
  • For optimal performance and reliability, it's recommended to follow the layout and routing guidelines provided in the STMicroelectronics application note AN2972, which includes recommendations for PCB layout, component placement, and signal routing.
  • To ensure data integrity and security, use the built-in CRC (Cyclic Redundancy Check) feature to detect errors during data transmission. Additionally, implement secure authentication and encryption mechanisms, such as AES, to protect data stored in the device.
  • The typical current consumption of the ST25DV16KC-JF6D3 is around 1.5 mA during read and write operations, and less than 1 μA in standby mode. However, the actual current consumption may vary depending on the operating frequency, data transfer rate, and other factors.
