ST25DV64K-IER8T3 - STMicroelectronics

Description: Dynamic NFC/RFID tag IC with 4-, 16-, or 64-Kbit EEPROM, and fast transfer mode capability

Download ST25DV64K-IER8T3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

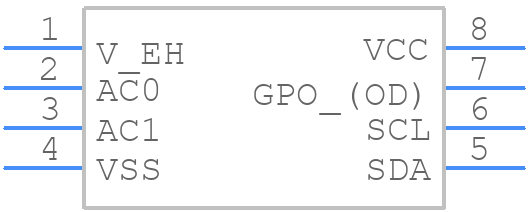

ST25DV64K-IER8T3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25DV64K-IER8T3 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP8 – Outline package*
click to zoom
3D Models
ST25DV64K-IER8T3 - STMicroelectronics - 3D model - Small Outline Packages - TSSOP8 – Outline package*
click to zoom

ST25DV64K-IER8T3 Details

  • Manufacturer Part Number:

    ST25DV64K-IER8T3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2018-06-14

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

ST25DV64K-IER8T3 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ST25DV64K-IER8T3 is 10 MHz, as specified in the datasheet. However, it's recommended to operate at 8 MHz or lower to ensure reliable communication and to avoid any potential issues with clock stretching.
  • In a multi-master system, it's essential to implement a bus arbitration mechanism to prevent data corruption and ensure reliable communication. The ST25DV64K-IER8T3 has a built-in arbitration mechanism that allows it to detect and respond to bus contention. However, it's still recommended to implement a software-based arbitration mechanism, such as a token-passing protocol, to ensure fair access to the bus and prevent any potential issues.
  • The recommended POR timing for the ST25DV64K-IER8T3 is to ensure that the power supply voltage (VCC) reaches its minimum specified value (1.8 V) before the clock signal (SCL) is applied. This ensures that the device is properly initialized and ready to communicate. A minimum POR timing of 10 ms is recommended to ensure reliable operation.
  • To implement a reliable write operation to the ST25DV64K-IER8T3, it's essential to follow the recommended write protocol specified in the datasheet. This includes sending a write command, followed by the address and data bytes, and then polling the device until the write operation is complete. It's also recommended to implement a retry mechanism in case of write errors or timeouts.
  • The ST25DV64K-IER8T3 supports a minimum of 1 million write cycles, as specified in the datasheet. However, the actual number of write cycles may vary depending on the operating conditions, such as temperature, voltage, and usage patterns. It's recommended to implement a wear-leveling mechanism to ensure that the device is used evenly and to extend its lifespan.
