ST25DV64KC-IE6C3 - STMicroelectronics

Description: Dynamic NFC/RFID tag IC with 4-, 16-, or 64-Kbit EEPROM, fast transfer mode capability, and optimized I2C

Download ST25DV64KC-IE6C3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

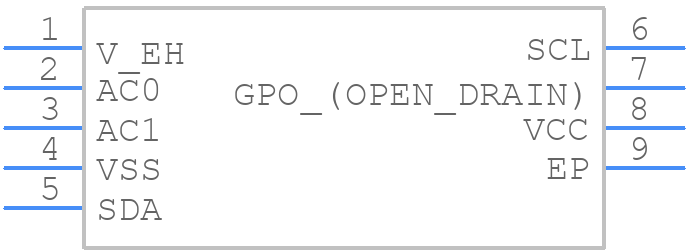

ST25DV64KC-IE6C3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25DV64KC-IE6C3 - STMicroelectronics PCB footprint - Other - Other - UFDFPN8_3
click to zoom
3D Models
ST25DV64KC-IE6C3 - STMicroelectronics - 3D model - Other - UFDFPN8_3
click to zoom

ST25DV64KC-IE6C3 Details

  • Manufacturer Part Number:

    ST25DV64KC-IE6C3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Memory IC Type:

    NFC/RFID TAGS AND TRANSPONDERS

  • Programming Voltage:

    12 V

ST25DV64KC-IE6C3 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ST25DV64KC-IE6C3 is 10 MHz, as specified in the datasheet. However, it's recommended to operate at 8 MHz or lower to ensure reliable communication and to avoid any potential issues with clock stretching.
  • The ST25DV64KC-IE6C3 uses a 16-bit CRC calculation. You can use the CRC-CCITT (0x1021) polynomial to calculate the CRC. The datasheet provides an example of the CRC calculation, and you can also use online CRC calculators or libraries to simplify the process.
  • The recommended antenna design for the ST25DV64KC-IE6C3 is a coil antenna with a diameter of 30-40 mm and 3-5 turns. The antenna should be tuned to the operating frequency of 13.56 MHz, and the datasheet provides guidelines for antenna design and tuning. You can also use online antenna design tools or consult with an RF engineer for custom antenna design.
  • The ST25DV64KC-IE6C3 supports password protection using a 32-bit password. You can implement password protection by writing the password to the password register (0x0F) and then locking the password using the LOCK command. The datasheet provides more information on password protection and locking mechanisms.
  • The maximum read/write endurance of the ST25DV64KC-IE6C3 is 100,000 cycles per byte. This means that each byte can be written and read up to 100,000 times before the memory may start to degrade. However, the actual endurance may vary depending on the operating conditions and usage patterns.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST25DV64KC-IE6C3 Overview

Use the download button to access the ST25DV64KC-IE6C3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST25D, or try a keyword search, such as Other Memory ICs
