ST25R3914-AQFT - STMicroelectronics

Description: Automotive high performance HF reader / NFC initiator with 1 W output power supporting AAT 32-pin QFN (5 mm x 5 mm)

Download ST25R3914-AQFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

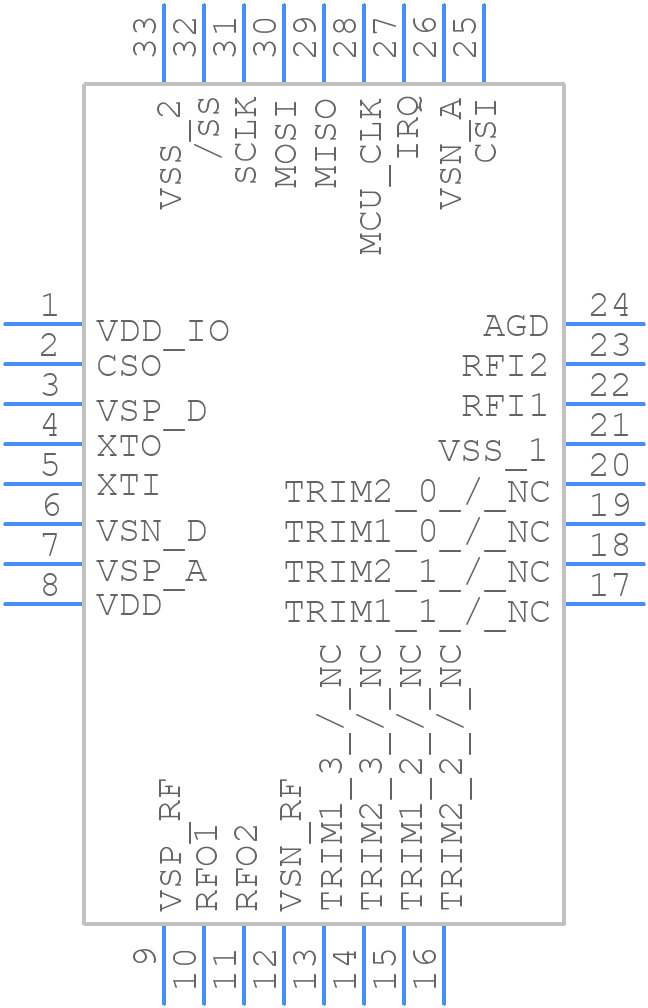

Symbol
ST25R3914-AQFT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25R3914-AQFT - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32 5 mm x 5 mm_1
click to zoom
3D Models
ST25R3914-AQFT - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN32 5 mm x 5 mm_1
click to zoom

ST25R3914-AQFT Details

  • Manufacturer Part Number:

    ST25R3914-AQFT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100; ISO 15693

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLERS

ST25R3914-AQFT Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ST25R3914-AQFT is 148 kHz, as per the ISO/IEC 14443 standard.
  • The ST25R3914-AQFT has an integrated antenna tuning circuit that allows for automatic tuning of the antenna to optimize the performance of the NFC reader.
  • The maximum distance for NFC communication using the ST25R3914-AQFT is typically around 10 cm, but this can vary depending on the specific use case and environment.
  • Yes, the ST25R3914-AQFT supports multiple protocols, including ISO/IEC 14443 A/B, ISO/IEC 18092, and NFC Forum specifications.
  • The ST25R3914-AQFT has a built-in power management system that allows for dynamic power scaling to minimize power consumption and reduce heat generation.
