ST25R3914-AQWT - STMicroelectronics

Description: Automotive high performance HF reader / NFC initiator with 1 W output power supporting AAT

Download ST25R3914-AQWT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

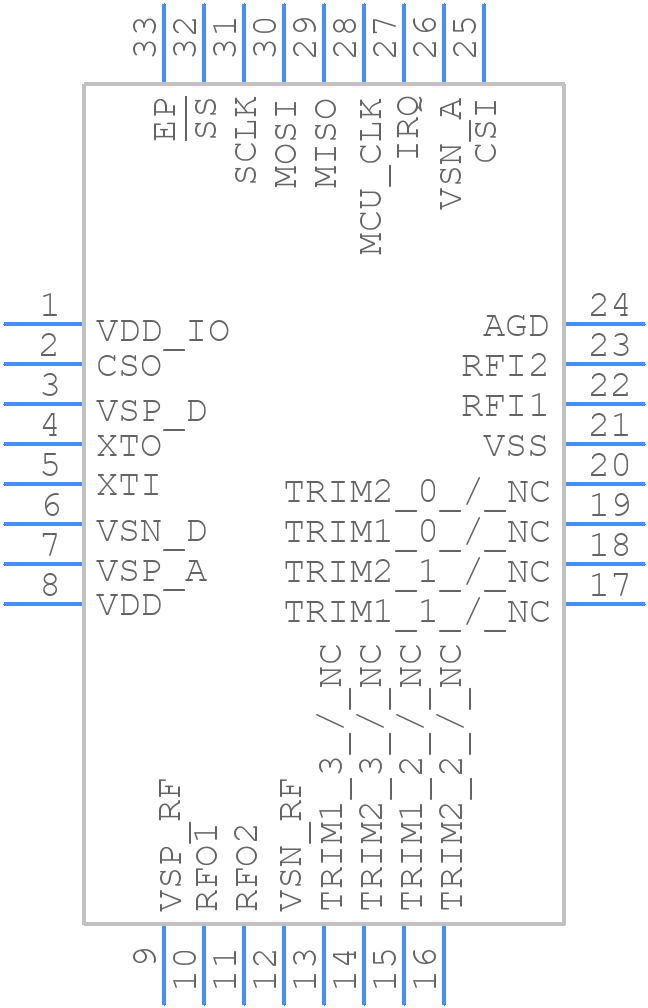

ST25R3914-AQWT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25R3914-AQWT - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ST25R3916-AQFT
click to zoom
3D Models
ST25R3914-AQWT - STMicroelectronics - 3D model - Quad Flat No-Lead - ST25R3916-AQFT
click to zoom

ST25R3914-AQWT Details

  • Manufacturer Part Number:

    ST25R3914-AQWT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

ST25R3914-AQWT Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ST25R3914-AQWT is 148 kHz, as per the ISO/IEC 14443 standard.
  • The ST25R3914-AQWT has an integrated antenna tuning circuit that allows for automatic tuning of the antenna to optimize the performance of the NFC reader.
  • The maximum distance for NFC communication using the ST25R3914-AQWT is typically around 10 cm (4 inches), but this can vary depending on the specific use case and environment.
  • Yes, the ST25R3914-AQWT supports multiple NFC protocols, including ISO/IEC 14443 A/B, FeliCa, and ISO/IEC 18092.
  • The ST25R3914-AQWT has a low power consumption mode that reduces power consumption when the device is not actively communicating, and it also has a wake-up function that allows it to quickly respond to NFC events.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST25R3914-AQWT Overview

Use the download button to access the ST25R3914-AQWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST25R, or try a keyword search, such as Other Telecom ICs
