ST25R3915-AQWT - STMicroelectronics

Description: Automotive high performance HF reader / NFC initiator with 1 W output power

Download ST25R3915-AQWT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

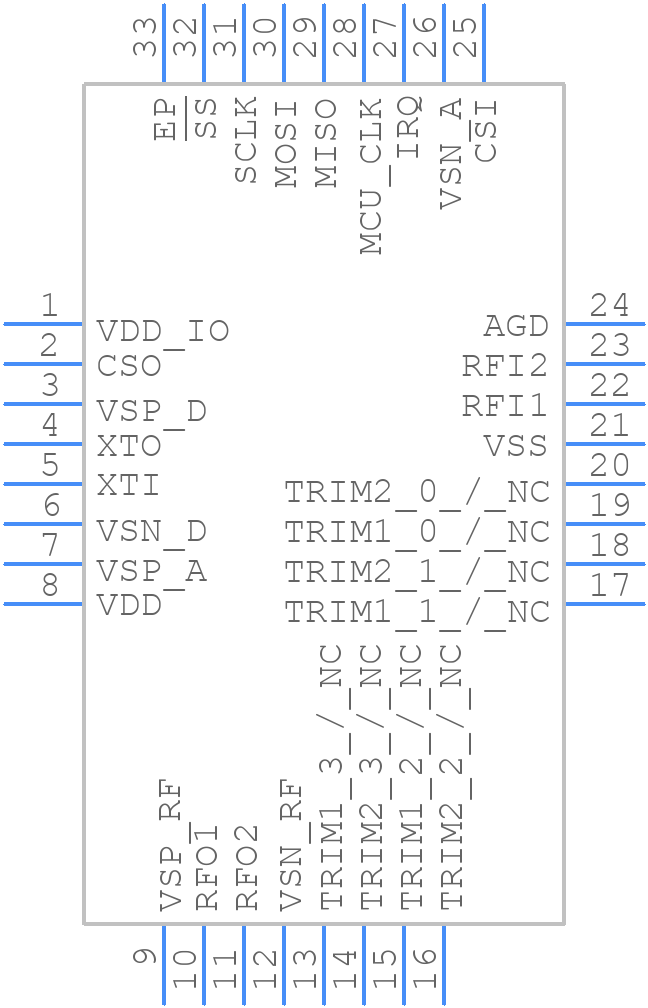

ST25R3915-AQWT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25R3915-AQWT - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN32 package
click to zoom
3D Models
ST25R3915-AQWT - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN32 package
click to zoom

ST25R3915-AQWT Details

  • Manufacturer Part Number:

    ST25R3915-AQWT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

ST25R3915-AQWT Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ST25R3915-AQWT is 148 kHz, but it can also operate at lower frequencies such as 125 kHz, 100 kHz, and 50 kHz.
  • The ST25R3915-AQWT has an integrated antenna tuning circuit that allows for automatic tuning of the antenna to optimize its performance. This is done through the use of a tuning capacitor and a tuning algorithm that adjusts the capacitance value based on the operating frequency and the antenna's characteristics.
  • The maximum distance that the ST25R3915-AQWT can operate at depends on various factors such as the operating frequency, the power of the transmitter, and the sensitivity of the receiver. However, in general, the ST25R3915-AQWT can operate at distances of up to 10 cm (4 inches) or more in ideal conditions.
  • Yes, the ST25R3915-AQWT supports multiple protocols including ISO/IEC 14443A, ISO/IEC 14443B, and FeliCa. It also supports proprietary protocols and can be customized to support other protocols as well.
  • The ST25R3915-AQWT has a low power consumption design that allows it to operate at low power modes to conserve energy. It also has a power-down mode that can be used to further reduce power consumption when the device is not in use.
