ST25R3916B-BWLT - STMicroelectronics

Description: NFC reader for payment, consumer and industrial applications

Download ST25R3916B-BWLT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

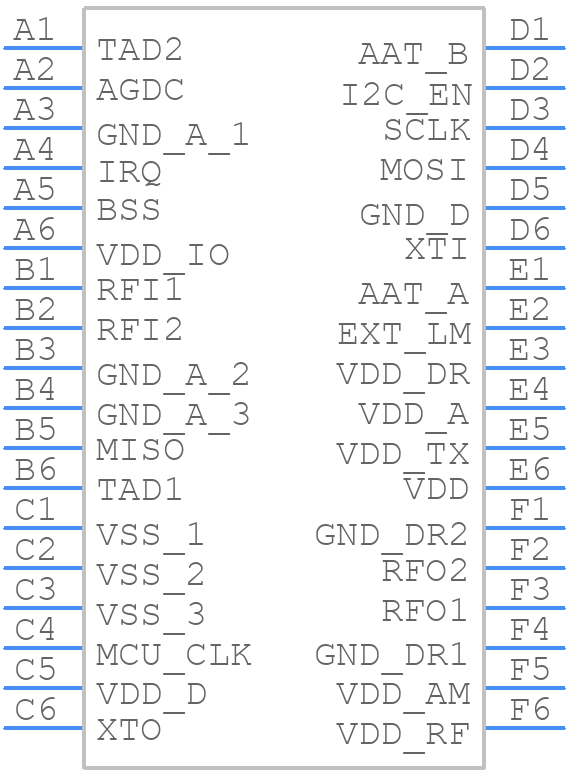

ST25R3916B-BWLT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25R3916B-BWLT - STMicroelectronics PCB footprint - BGA - BGA - WLCSP36_2022
click to zoom
3D Models
ST25R3916B-BWLT - STMicroelectronics - 3D model - BGA - WLCSP36_2022
click to zoom

ST25R3916B-BWLT Details

  • Manufacturer Part Number:

    ST25R3916B-BWLT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-36

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • JESD-30 Code:

    R-XBCS-B36

  • Length:

    3.223 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    CSP

  • Package Equivalence Code:

    BGA36,6X6,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP SCALE

  • Seated Height-Max:

    0.63 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.6 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3.213 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

ST25R3916B-BWLT Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ST25R3916B-BWLT is 148 kHz, but it can also operate at lower frequencies such as 106 kHz, 100 kHz, and 50 kHz.
  • The ST25R3916B-BWLT has an integrated antenna tuning circuit that allows for automatic tuning of the antenna to optimize its performance. This is done through the use of a tuning capacitor and a tuning algorithm that adjusts the capacitance value based on the operating frequency and the antenna's characteristics.
  • The maximum distance that the ST25R3916B-BWLT can operate at depends on various factors such as the operating frequency, the antenna design, and the environment. However, in general, the ST25R3916B-BWLT can operate at distances of up to 10 cm (4 inches) or more in ideal conditions.
  • The ST25R3916B-BWLT has a low power consumption design, with a typical active mode current of 12 mA and a typical standby mode current of 10 μA. It also has a power-down mode that can reduce the current consumption to less than 1 μA.
  • The ST25R3916B-BWLT supports various protocols including ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 18092, and NFC Forum specifications. It also supports proprietary protocols such as MIFARE and FeliCa.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST25R3916B-BWLT Overview

Use the download button to access the ST25R3916B-BWLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST25R, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
