ST25TN01K-AFH5 - STMicroelectronics

Description: NFC Forum Type 2 tag IC with up to 1.6 Kbits of EEPROM

Download ST25TN01K-AFH5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

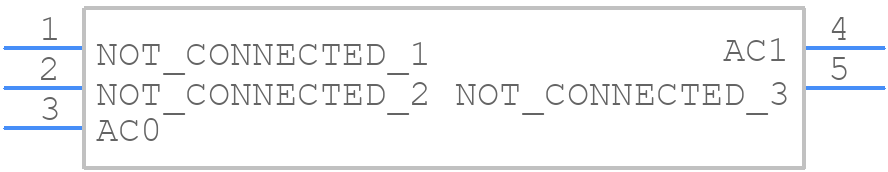

ST25TN01K-AFH5 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST25TN01K-AFH5 - STMicroelectronics PCB footprint - Other - Other - UFDFPN5_2021
click to zoom
3D Models
ST25TN01K-AFH5 - STMicroelectronics - 3D model - Other - UFDFPN5_2021
click to zoom

ST25TN01K-AFH5 Details

  • Manufacturer Part Number:

    ST25TN01K-AFH5

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-609 Code:

    e4

  • Memory IC Type:

    EEPROM

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

ST25TN01K-AFH5 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for ST25TN01K-AFH5 is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, from -40°C to 150°C.
  • To ensure reliable communication with the ST25TN01K-AFH5, it's crucial to follow the recommended antenna design and tuning guidelines provided in the application notes and datasheet. Additionally, ensure that the device is properly powered, and the communication protocol is correctly implemented.
  • The ST25TN01K-AFH5 has a minimum data retention period of 50 years, as specified in the datasheet. However, the actual data retention period may be longer, depending on factors such as storage conditions and usage patterns.
  • Yes, the ST25TN01K-AFH5 is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to prevent mechanical stress, which can affect its performance and reliability.
  • The ST25TN01K-AFH5 has built-in cryptographic capabilities, including AES-128 encryption and secure data storage. To implement secure data storage and encryption, follow the guidelines provided in the datasheet and application notes, and use the recommended cryptographic libraries and tools.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST25TN01K-AFH5 Overview

Use the download button to access the ST25TN01K-AFH5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST25T, or try a keyword search, such as EEPROMs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
