ST2G3236QTR - STMicroelectronics

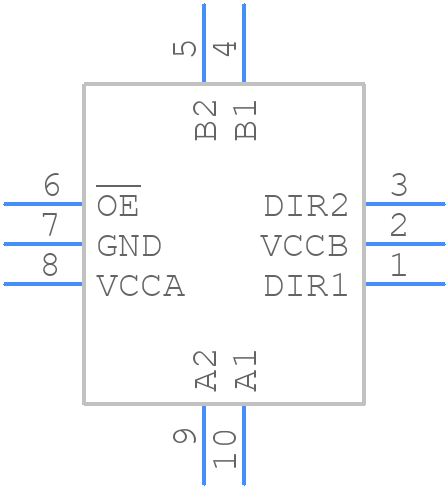

ST2G3236QTR Details

• Manufacturer Part Number:

  ST2G3236QTR

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFN

• Package Description:

  1.80 X 1.40 MM, QFN-10

• Pin Count:

  10

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Control Type:

  COMMON CONTROL

• Count Direction:

  BIDIRECTIONAL

• Family:

  2G

• JESD-30 Code:

  S-XQCC-N10

• JESD-609 Code:

  e4

• Length:

  1.8 mm

• Logic IC Type:

  BUS TRANSCEIVER

• Max I(ol):

  0.002 A

• Moisture Sensitivity Level:

  1

• Number of Bits:

  2

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC10,.06X.07,16

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Prop. Delay@Nom-Sup:

  5.8 ns

• Propagation Delay (tpd):

  6.2 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.55 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  1.4 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.4 mm
