ST2L05R3300PS - STMicroelectronics

Description: LDO Voltage Regulators Lo Quiescent Current Dual VLTG Regultr

Download ST2L05R3300PS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

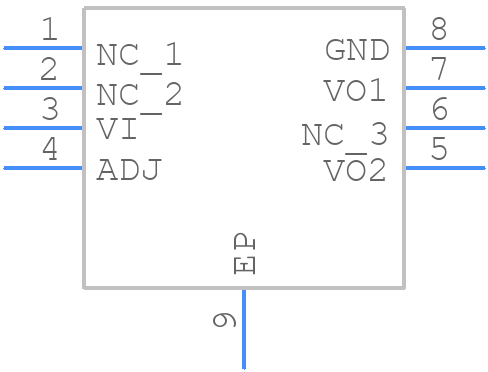

ST2L05R3300PS - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST2L05R3300PS - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8 (5 x 6 mm)
click to zoom
3D Models
ST2L05R3300PS - STMicroelectronics - 3D model - Small Outline No-lead - DFN8 (5 x 6 mm)
click to zoom

ST2L05R3300PS Details

  • Manufacturer Part Number:

    ST2L05R3300PS

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.26

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Nom:

    1.3 V

  • Input Voltage Absolute-Max:

    10 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Line Regulation-Max:

    0.015%

  • Line Regulation-Max (%/V):

    0.7

  • Load Regulation-Max:

    0.012%

  • Load Regulation-Max(%):

    0.4%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    1 A

  • Output Current2-Max:

    1 A

  • Output Voltage1-Max:

    3.4 V

  • Output Voltage1-Min:

    3.2 V

  • Output Voltage1-Nom:

    3.3 V

  • Output Voltage2-Max:

    5.7 V

  • Output Voltage2-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3%

  • Width:

    5 mm

ST2L05R3300PS Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended. The device should be placed near the center of the PCB to minimize thermal resistance.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Ensure good thermal management, use a heat sink if necessary, and avoid overheating the device. Also, consider the derating curves for power dissipation vs. temperature.
  • The ST2L05R3300PS has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, ensure that the device is powered up and down slowly, and avoid voltage spikes or transients on the power supply lines.
  • When selecting an output capacitor, consider the output voltage ripple, output current, and operating frequency. A low-ESR capacitor with a value between 10uF to 22uF is recommended. The capacitor should be rated for the output voltage and have a low impedance at the switching frequency.
  • For PCB assembly and soldering, ensure that the device is handled and stored in an ESD-safe environment. Use a soldering iron with a temperature-controlled tip, and avoid applying excessive heat or force during soldering. Follow the recommended soldering profile, and ensure that the device is properly cleaned and dried after soldering.
