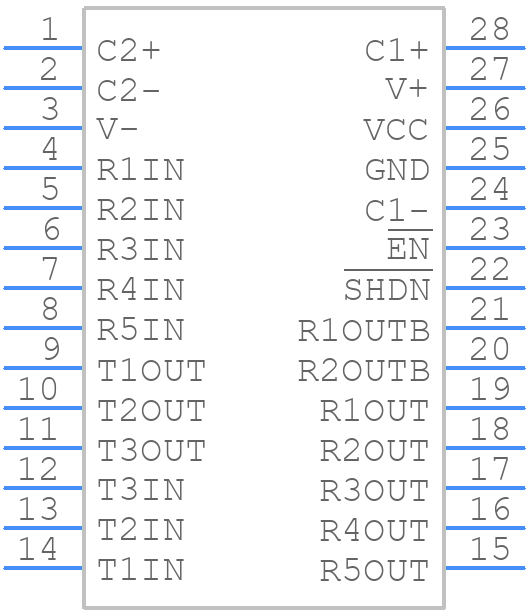

ST3241EBPR - STMicroelectronics

ST3241EBPR Details

• Manufacturer Part Number:

  ST3241EBPR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SSOP

• Package Description:

  SSOP-28

• Pin Count:

  28

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  11 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  7.2

• Differential Output:

  NO

• Driver Number of Bits:

  3

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232; TIA-232; V.24; V.28

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e4

• Length:

  10.2 mm

• Number of Functions:

  3

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  10 V

• Output Low Current-Max:

  0.0016 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP28,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Receiver Number of Bits:

  5

• Seated Height-Max:

  2 mm

• Supply Current-Max:

  1 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  5.3 mm
