ST33KTPM2X32CKE2 - STMicroelectronics

Description: STSAFE-TPM trusted platform module 2.0 with a SPI interface

Download ST33KTPM2X32CKE2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

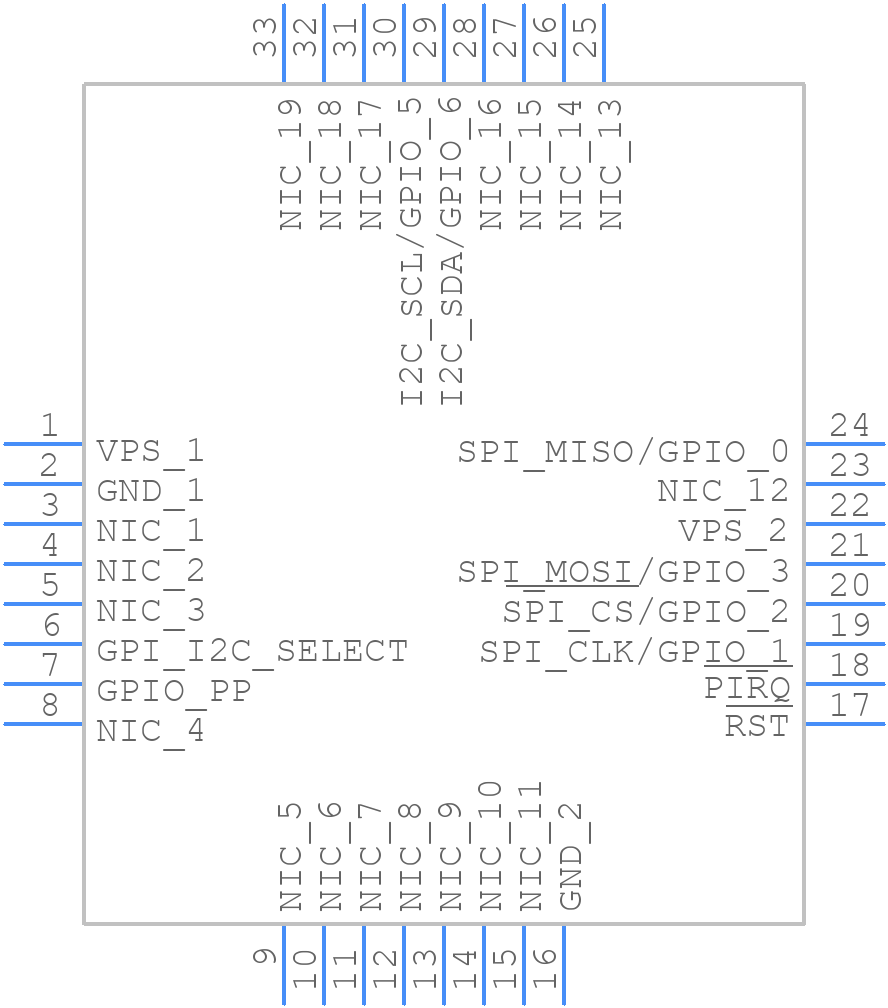

ST33KTPM2X32CKE2 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST33KTPM2X32CKE2 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFQFPN 32 5x5x0.55 mm_2023-1
click to zoom
3D Models
ST33KTPM2X32CKE2 - STMicroelectronics - 3D model - Quad Flat No-Lead - UFQFPN 32 5x5x0.55 mm_2023-1
click to zoom

ST33KTPM2X32CKE2 Details

  • Manufacturer Part Number:

    ST33KTPM2X32CKE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UFQFPN-32

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • Additional Feature:

    3.3V SUPPLY ALSO AVAILABLE

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ST33KTPM2X32CKE2 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5156, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and security of the ST33KTPM2X32CKE2.
  • STMicroelectronics provides a secure boot implementation guide in the application note AN5157, which details the steps to implement secure boot using the ST33KTPM2X32CKE2, including key generation, signing, and verification.
  • The ST33KTPM2X32CKE2 is rated for operation from -40°C to 105°C, but it's recommended to operate within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
  • The ST33KTPM2X32CKE2 can be configured for I2C or SPI interface through the configuration pins (CFG0-CFG2) during power-up. The configuration settings are detailed in the datasheet and application notes.
  • The ST33KTPM2X32CKE2 has a minimum data retention period of 10 years at 25°C, but this can be extended to 20 years or more depending on the storage conditions and usage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST33KTPM2X32CKE2 Overview

Use the download button to access the ST33KTPM2X32CKE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST33K, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
