ST4SI2M0004TPIFW - STMicroelectronics

Description: eSIM GSMA system-on-chip solution for secure M2M industrial applications

Download ST4SI2M0004TPIFW Model

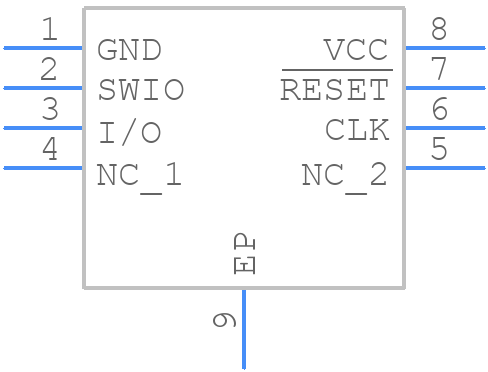

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ST4SI2M0004TPIFW - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - ST4SI2M0004TPIFW
click to zoom
3D Models
ST4SI2M0004TPIFW - STMicroelectronics  - 3D model - Small Outline No-lead - ST4SI2M0004TPIFW
click to zoom

ST4SI2M0004TPIFW Details

  • Manufacturer Part Number:

    ST4SI2M0004TPIFW

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VFDFPN-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ST4SI2M0004TPIFW Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ST4SI2M0004TPIFW is -40°C to 125°C.
  • The power-up sequence for the ST4SI2M0004TPIFW should follow the recommended sequence in the datasheet: VDDIO, VDD, and then VREF. Ensure that VDDIO is powered up before VDD, and VREF should be powered up last.
  • The maximum clock frequency supported by the ST4SI2M0004TPIFW is 100 MHz.
  • To configure the ST4SI2M0004TPIFW for low-power operation, use the power-down mode (PD) and set the clock frequency to the lowest possible value. Additionally, consider using the dynamic voltage and frequency scaling (DVFS) feature to optimize power consumption.
  • For optimal performance and signal integrity, follow the recommended layout and routing guidelines in the datasheet, including using a solid ground plane, minimizing trace lengths, and using differential pairs for clock signals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST4SI2M0004TPIFW Overview

Use the download button to access the ST4SI2M0004TPIFW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST4SI, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
