ST4SI2M0007AKIFW - STMicroelectronics

Description: GSMA eSIM system-on-chip for secure M2M industrial applications

Download ST4SI2M0007AKIFW Model

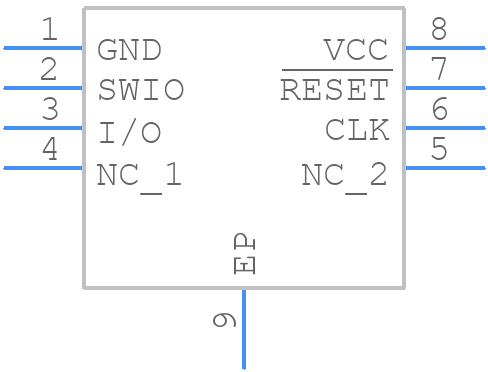

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ST4SI2M0007AKIFW - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - VFDFPN8_2021
click to zoom
3D Models
ST4SI2M0007AKIFW - STMicroelectronics  - 3D model - Small Outline No-lead - VFDFPN8_2021
click to zoom

ST4SI2M0007AKIFW Details

  • Manufacturer Part Number:

    ST4SI2M0007AKIFW

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Package Description:

    VFDFPN-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ST4SI2M0007AKIFW Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5156, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ST4SI2M0007AKIFW has a high power dissipation, so thermal management is crucial. Use a heat sink, ensure good airflow, and follow the thermal design guidelines in the datasheet and application notes to keep the junction temperature below 150°C.
  • The recommended input capacitance is 10nF to 100nF, depending on the application and noise requirements. A larger capacitance can help filter out noise, but may affect the device's response time.
  • Follow the EMC guidelines in the datasheet and application notes, including using a shielded enclosure, minimizing loop areas, and using filtering components to reduce electromagnetic interference (EMI).
  • The maximum operating frequency is 1 MHz, but it can be limited by the application and noise requirements. Consult the datasheet and application notes for specific frequency limitations and recommendations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST4SI2M0007AKIFW Overview

Use the download button to access the ST4SI2M0007AKIFW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST4SI, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
