ST4SI2M0020TPIFW - STMicroelectronics

Description: eSIM GSMA system-on-chip solution for secure M2M industrial applications

Download ST4SI2M0020TPIFW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

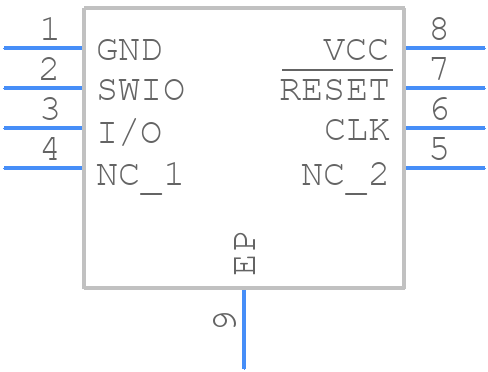

ST4SI2M0020TPIFW - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST4SI2M0020TPIFW - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - VFDFPN8_2021
click to zoom
3D Models
ST4SI2M0020TPIFW - STMicroelectronics - 3D model - Small Outline No-lead - VFDFPN8_2021
click to zoom

ST4SI2M0020TPIFW Details

  • Manufacturer Part Number:

    ST4SI2M0020TPIFW

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFDFPN-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

ST4SI2M0020TPIFW Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ST4SI2M0020TPIFW is -40°C to 125°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and airflow management.
  • The maximum allowed voltage for the ST4SI2M0020TPIFW is 3.6V, as specified in the datasheet.
  • To prevent electrostatic discharge (ESD) damage, it's recommended to follow proper ESD handling procedures, including the use of ESD-protective packaging, wrist straps, and mats.
  • The recommended storage condition for the ST4SI2M0020TPIFW is in a dry, cool place, away from direct sunlight, with a relative humidity below 60% and a temperature range of -40°C to 30°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST4SI2M0020TPIFW Overview

Use the download button to access the ST4SI2M0020TPIFW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST4SI, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
