ST62T25B6/HWD - STMicroelectronics

Description: 8-bit Microcontrollers - MCU

Download ST62T25B6/HWD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

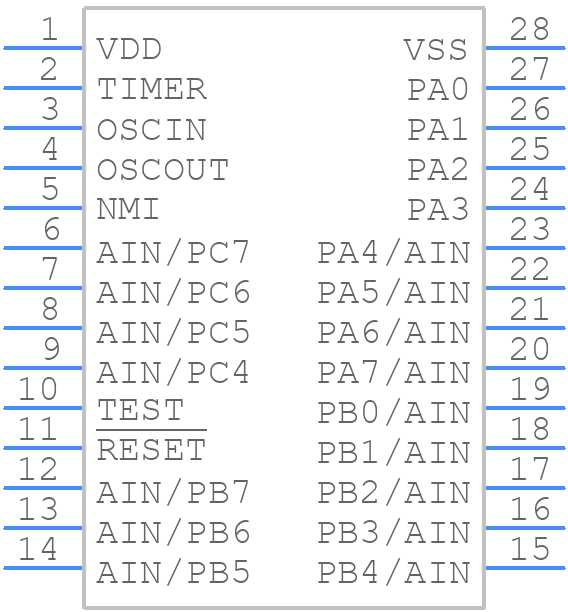

ST62T25B6/HWD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

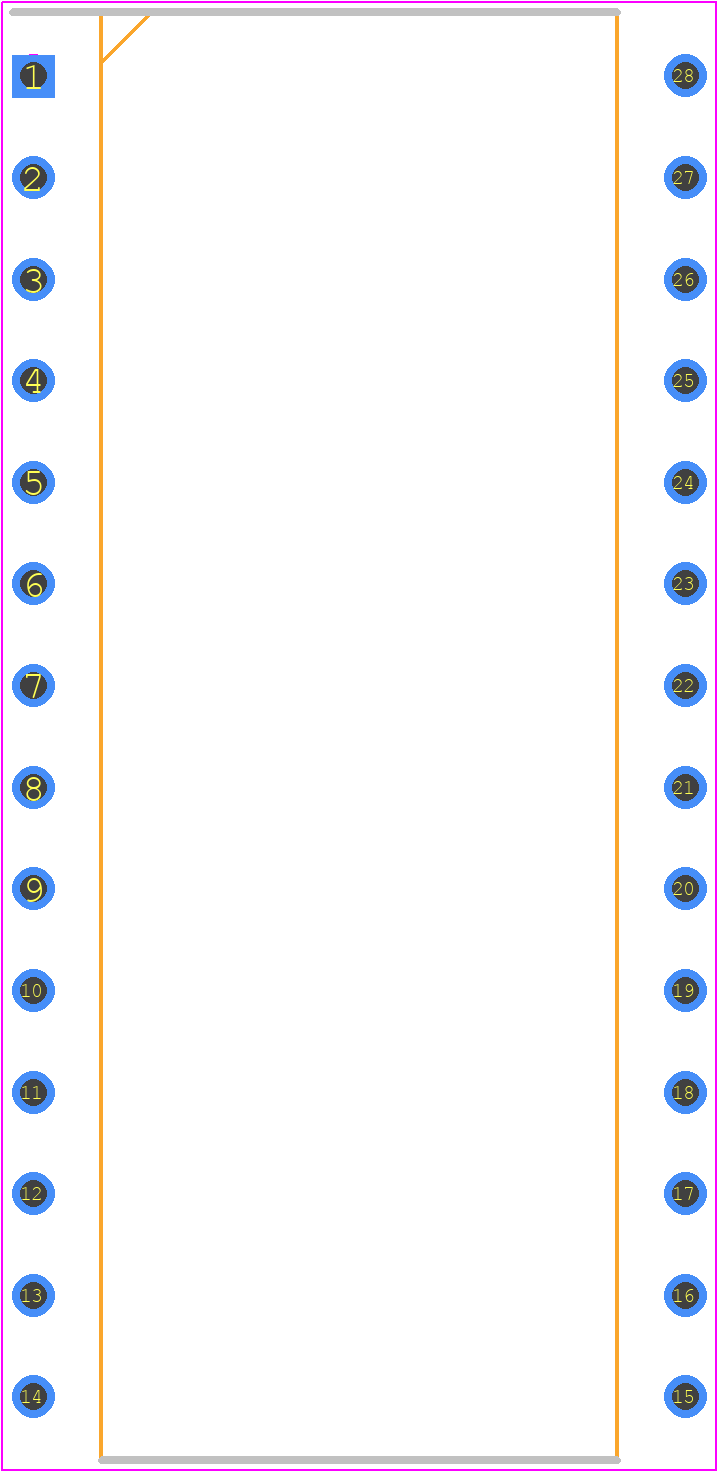

ST62T25B6/HWD - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ST62T25B6/HWD
click to zoom
3D Models
ST62T25B6/HWD - STMicroelectronics - 3D model - Dual-In-Line Packages - ST62T25B6/HWD
click to zoom

ST62T25B6/HWD Details

  • Manufacturer Part Number:

    ST62T25B6/HWD

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.600 INCH, PLASTIC, DIP-28

  • Pin Count:

    28

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    3 V @ 2 MHZ; USER SELECTABLE DATA ROM

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    ST6200

  • Clock Frequency-Max:

    8 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e0

  • Length:

    37.4 mm

  • Low Power Mode:

    YES

  • Number of External Interrupts:

    1

  • Number of I/O Lines:

    20

  • Number of Terminals:

    28

  • Number of Timers:

    1

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    64

  • RAM (words):

    64

  • ROM (words):

    4096

  • ROM Programmability:

    OTPROM

  • Seated Height-Max:

    6.35 mm

  • Speed:

    0.615 MHz

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
